The First Korean Case of NUP98-DDX10 Rearrangement in Therapy-Related Myeloid Neoplasm

Abstract

Inv(11)(p15q22)/NUP98-DDX10 rearrangement is a rare genetic aberration reported in de-novo and therapy-related myeloid neoplasms (t-MNs). Here, we report the first Korean case of t-MN with an NUP98-DDX10 rearrangement. A 51-year-old Korean woman received treatment for epithelial ovarian cancer. Following the initial surgical intervention, she received multiple courses of chemotherapy along with radiotherapy owing to the recurrent episodes of relapse of the disease. The patient underwent a bone marrow investigation owing to persistent pancytopenia, and no definite evidence of dysplastic features was observed in peripheral blood cells or precursors. However, a cytogenetic investigation revealed that chromosome 11 had pericentric inversion with breaks and reunion at p15 and q22 bands in 14 out of 20 metaphases. Reverse transcription-PCR and subsequent sequencing confirmed the NUP98 exon 14-DDX10 exon 7 gene rearrangement (type II). Based on these findings, and her past history of treatment for ovarian cancer, she was ultimately diagnosed with t-MN. This case underscores the need for meticulous genetic tests for the diagnosis of unexplained cytopenia in patients with cancer under follow-up, particularly when there is no dysplasia or increase in blasts.

Go to : Goto

초록

11번 염색체 단완의 15부위와 장완의 22부위의 역위(NUP98-DDX10)로 인한 재배열은 드물게 보고되는 염색체 이상으로, 새로 발병하거나 치료관련골수성종양과 관련된 사례들에서 보고되어 왔다. 본 증례는 국내 최초로 NUP98-DDX10 재배열을 보인 치료관련골수성종양이다. 환자는 51세 여자로 상피난소암을 진단받고 수술적 제거 이후 여러 차례의 항암화학요법을 시행 받았으며, 반복적인 재발로 인해 방사선 치료도 받았다. 이후 지속된 범혈구감소증으로 인해 골수 검사를 시행하였으나 말초혈액세포나 골수전구세포의 형태학적 이상은 발견되지 않았다. 한편, 세포유전 검사를 통해 11번 염색체 단완의 15부위와 장완의 22부위의 역위가 총 20개의 중기세포 중 14개에서 관찰이 되었고, 이는 역전사 중합효소연쇄반응과 직접염기서열분석법을 통해 NUP98 유전자의 엑손 14와 DDX10 유전자의 엑손 7의 재배열임을 확인하였다. 과거 난소암 치료력을 고려하여 환자는 최종적으로 치료관련골수성종양으로 진단을 받았다. 본 증례는 암환자 치료 후 발생한 혈구감소증의 감별진단에 있어 특히 형태학적 이상이나 모세포의 증가가 없을 때 유전 검사의 중요성을 강조한다.

Go to : Goto

INTRODUCTION

A chromosomal rearrangement involving the nucleoporin 98 (NUP98) gene on the chromosome band 11p15 is known to be associated with myeloid malignancies with poor prognostic implications [1]. More than 30 different fusion partner genes for NUP98 are known so far [2]. Among them, the fusion with DEAD-box helicase 10 (DDX10), a putative RNA helicase gene located on chromosome 11q22, can lead to pathologic leukemogenesis and suppress the differentiation of hematopoietic progenitor cells [3]. To date, 16 cases of the NUP98-DDX10 rearrangement have been reported [4]. The majority of them were de-novo or therapy-related acute myeloid leukemia (AML) cases, with one de-novo myelodysplastic syndrome (MDS) and two therapy-related MDS cases [4]. Here, we report the first Korean case of inv(11)(p15q22)/NUP98-DDX10 in therapy-related MDS associated with ovarian cancer. The institutional review board of Samsung Medical Center, Seoul, Korea, approved this study (approval number: 2022-12-117) and waived the need for informed consent.
Go to : Goto

CASE REPORT

A 51-year-old woman was diagnosed with epithelial ovarian cancer in 2018 and underwent mass removal surgery. After the initial surgical intervention, she received the following courses of chemotherapy and radiotherapy due to recurrent relapses of the disease: carboplatin and bevacizumab from March 2018 to July 2018, doxorubicin and carboplatin from October 2019 to April 2020, nivolumab from January 2021 to February 2021, and radiation therapy in April 2021. She was administered multiple transfusions of red blood cells and platelets along with injections of granulocyte colony-stimulating factor while receiving chemotherapy for pancytopenia. Despite the supportive care, her cytopenia persisted and could not be clinically correlated, which prompted us to perform a bone marrow (BM) investigation in May 2021. Her complete blood cell counts (CBC) on the day of the BM investigation were as follows: hemoglobin, 10.0 g/dL; white blood cells, 2.47×109/L (absolute neutrophil count, 1.46×109/L); platelets, 56 ×109/L; and the differential count was segmented neutrophils, 59%; lymphocytes, 17%; and monocytes, 24%. The BM biopsy revealed normocellular marrow (30% cellularity), and no apparent dysplastic features in either peripheral blood cells or bone marrow precursors were observed. Chromosome analysis of BM cells showed 46,XX,inv(11)(p15q22)[14]/46,XX[5]. Fluorescent in situ hybridization analysis for MLL[t(11q23)] (Vysis LSI MLL dual color, break apart rearrangement probe) revealed no abnormal signals. Due to the insufficient BM specimens, RNA was extracted from peripheral blood leukocytes, and the NUP98-DDX10 fusion transcripts were detected via reverse transcription-PCR (RT-PCR) using previously described primers [6]. Direct sequencing revealed the junction between exon 14 of NUP98 and exon 7 of DDX10 (type II) (Fig. 1). Based on these findings, and her past treatment history for ovarian cancer, the patient was finally diagnosed with therapy-related myeloid neoplasm (t-MN). She resumed chemotherapy after receiving conservative treatment, including transfusions and eltrombopag for severe thrombocytopenia; however, her CBC was not recovered. She was lost to follow-up after her last visit, five months after the BM investigation.
lmo-14-1-43-f1.tif

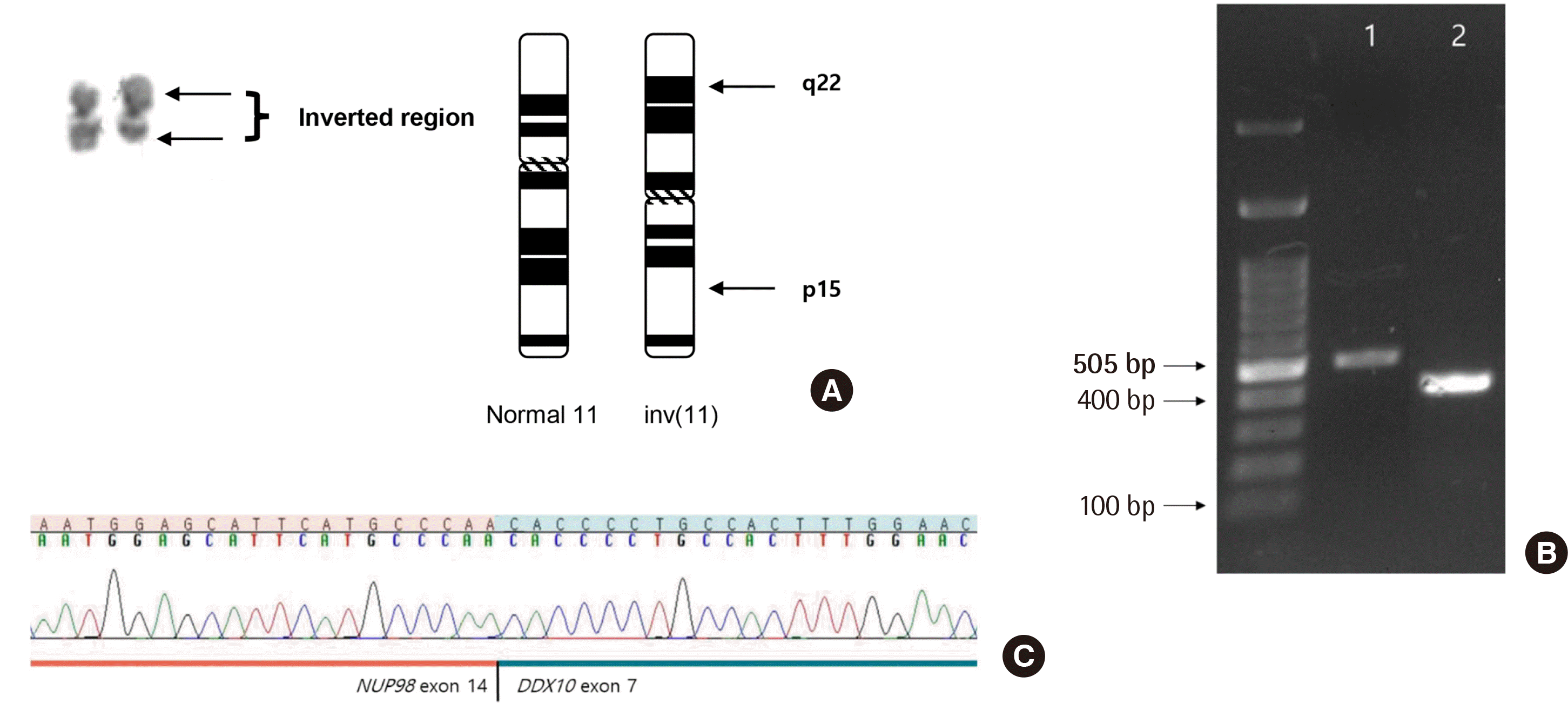

Fig. 1
Results of chromosome analysis, reverse transcription-PCR (RT-PCR), and direct sequencing. (A) Normal chromosome 11 (left) and inv(11)(p15q22) (right) visualized through Giemsa-banded karyotyping and ideograms at 400-band resolution. (B) A 505-bp amplicon, revealed by RT-PCR, representing the NUP98-DDX10 fusion transcript (lane 1) and GAPDH control (lane 2). (C) Fusion transcript between exon 14 of NUP98 and exon 7 of DDX10 (type II) identified via direct Sanger sequencing.

Download Figure

Go to : Goto

DISCUSSION

The NUP98 rearrangement is expected to be newly added as one of the defining genetic abnormalities of AML in the upcoming 5th edition of the World Health Organization Classification of Hematolymphoid Tumors, given its multiple partner genes and prognostic implications [7]. NUP98, which encodes a component of the nuclear pore complex, is known to produce aberrant proteins by fusion with various partner genes [1]. The nuclear pore complexNUP-98 provides a bidirectional route for the transportation of small to large materials, including ions, peptides, and proteins, between the nucleus and cytoplasm [1]. DDX10 encodes proteins that are involved in RNA splicing, translation initiation, and ribosome assembly [8]. In 1997, NUP98-DDX10 fusion was first described, along with its potential for inducing tumorigenesis [6]. Three types of isoforms have been identified with respect to the NUP98-DDX10 fusion [9]. Type I is the fusion of NUP98 exon 12 (NM_139131.1) with DDX10 exon 6 (NM_004398.2), and only one case has been reported [9]. Type II is the fusion of NUP98 exon 14 with DDX10 exon 7 and is the most common type. Type III is the fusion of NUP98 exon 15 (nucleotide 2023) with DDX10 exon 7 (nucleotide 914) [9]. This rare but recurrent chromosomal abnormality has been discussed for several years; however, the exact mechanism of its fusion and the role of each isoform are yet to be established [4, 9]. Nakao et al. demonstrated that the NUP98-DDX10 fusion transcript may be associated with the t-MN due to DNA-topoisomerase II inhibitors, which are used in cancer therapy [5]. The patient described in this case report received doxorubicin together with carboplatin and radiation therapy for ovarian cancer. Of note, her hematopoietic cells had no dysplastic features or increased blasts. As a result, t-MN could not be considered for differential diagnosis without detection of the inversion of chromosome 11 upon chromosome analysis and subsequent RT-PCR examination to identify the fusion. This case indicates the significance of meticulous clinical correlation and genetic investigation for the diagnosis of t-MN, which is particularly relevant in cases with cryptic rearrangements.
To our knowledge, this is the first case of t-MN with inv(11)(p15q22)/NUP98-DDX10 in Korea. Data from more cases are needed for elucidation of the clinical and therapeutic implications of inv(11)(p15q22)/NUP98-DDX10 in t-MN.
Go to : Goto

Notes

Conflicts of Interest

None declared.

Go to : Goto

REFERENCES

1. Gough SM, Slape CI, Aplan PD. 2011; NUP98 gene fusions and hematopoietic malignancies: common themes and new biologic insights. Blood. 118:6247–57. DOI: 10.1182/blood-2011-07-328880. PMID: 21948299. PMCID: PMC3236115.
2. Michmerhuizen NL, Klco JM, Mullighan CG. 2020; Mechanistic insights and potential therapeutic approaches for NUP98-rearranged hematologic malignancies. Blood. 136:2275–89. DOI: 10.1182/blood.2020007093. PMID: 32766874. PMCID: PMC7702474.
3. Yassin ER, Abdul-Nabi AM, Takeda A, Yaseen NR. 2010; Effects of the NUP98-DDX10 oncogene on primary human CD34+ cells: role of a conserved helicase motif. Leukemia. 24:1001–11. DOI: 10.1038/leu.2010.42. PMID: 20339440. PMCID: PMC2868946.
4. Choi R, Jang MA, Yoo KH, Lee ST, Kim HJ, Kim SH. 2014; The first Korean case of childhood acute myeloid leukemia with inv(11)(p15q22)/NUP98-DDX10 rearrangement: a rare but recurrent genetic abnormality. Ann Lab Med. 34:478–80. DOI: 10.3343/alm.2014.34.6.478. PMID: 25368827. PMCID: PMC4215408.
5. Nakao K, Nishino M, Takeuchi K, Iwata M, Kawano A, Arai Y, et al. 2000; Fusion of the nucleoporin gene, NUP98, and the putative RNA helicase gene, DDX10, by inversion 11 (p15q22) chromosome translocation in a patient with etoposide-related myelodysplastic syndrome. Intern Med. 39:412–5. DOI: 10.2169/internalmedicine.39.412. PMID: 10830185.
6. Arai Y, Hosoda F, Kobayashi H, Arai K, Hayashi Y, Kamada N, et al. 1997; The inv(11)(p15q22) chromosome translocation of de novo and therapy-related myeloid malignancies results in fusion of the nucleoporin gene, NUP98, with the putative RNA helicase gene, DDX10. Blood. 89:3936–44. DOI: 10.1182/blood.V89.11.3936. PMID: 9166830.
7. Alaggio R, Amador C, Anagnostopoulos I, Attygalle AD, Araujo IBO, Berti E, et al. 2022; The 5th edition of the World Health Organization classification of haematolymphoid tumours: lymphoid neoplasms. Leukemia. 36:1720–48. DOI: 10.1038/s41375-022-01620-2. PMID: 35732829. PMCID: PMC9214472.
8. Savitsky K, Ziv Y, Bar-Shira A, Gilad S, Tagle DA, Smith S, et al. 1996; A human gene (DDX10) encoding a putative DEAD-box RNA helicase at 11q22-q23. Genomics. 33:199–206. DOI: 10.1006/geno.1996.0184. PMID: 8660968.
9. Gorello P, Nofrini V, Brandimarte L, Pierini V, Crescenzi B, Nozza F, et al. 2013; Inv(11)(p15q22)/NUP98-DDX10 fusion and isoforms in a new case of de novo acute myeloid leukemia. Cancer Genet. 206:92–6. DOI: 10.1016/j.cancergen.2013.02.001. PMID: 23522748.
