Friedenstein and co-workers were the first to demonstrate that whole bone marrow transplanted under the kidney capsule of mice formed a heterotopic osseous tissue that was self-maintaining (not remodeled by host tissue) and functioned as a hematopoietic organ (reviewed in 1). Friedenstein also showed that heterotopic osseous tissue could be regenerated in vivo following serial transplantation of marrow cells to secondary recipients, indicating that this activity was due to a unique stem cell in bone marrow distinct from that responsible for hematopoiesis. Subsequent studies further revealed that the osteogenic capacity of marrow segregated with the fibroblastoid cell fraction, which was enriched from marrow by its propensity to adhere to tissue culture plastic. These plastic adherent cells, which were referred to as marrow stromal cells, retained the capacity to form bone in vivo even after culture expansion in vitro.

One immediate consequence of Friedenstein’s work was the use of marrow stromal cells as feeder layers to establish long-term bone marrow cultures (2, 3). This advance allowed hematopoiesis to be studied in vitro and led to the identification of various adhesion molecules, growth factors, and cytokines secreted by marrow stromal cells that regulated granulopoiesis, lymphopoiesis, and supported maintenance of the hematopoietic stem cell (4). Another was the subsequent realization that marrow stromal cells were capable of multi-lineage differentiation (5, 6), which validated in part the mesengenic process first proposed by Caplan (7). Studies showing that clonal populations of rodent (8) and human (9) stromal cells were multi-potent led to the adoption of the term “mesenchymal stem cell” to denote this cell population.

Despite these advances and the more recent emergence of MSCs as a prominent resource for cell-based therapy, many aspects of their biology remain indeterminate. Specifically, the term “mesenchymal stem cells” implies a homogeneous population of self-renewing stem cells that are maintained in vitro over an extended time course of culture expansion. Although most MSC populations, with the exception of those from mouse bone marrow, exhibit a high proliferative capacity and can be expanded clonally in vitro (10), empirical evidence demonstrating self-renewal via a process of asymmetric cell division is lacking. Alternatively, various groups have demonstrated that populations are functionally heterogeneous with respect to their differentiation potential. For example, analysis of a large cohort of clonally-derived human MSC populations revealed that only one in three clones retained the capacity for multi-lineage differentiation, which was subsequently diminished as a function of passage in vitro (11). Other studies have shown that fewer than 50% of human MSC clones that undergo osteogenic differentiation in vitro are capable of forming heterotopic osseous tissue in vivo (12). Analysis of a large number of mouse marrow stromal cell lines has also revealed inherent differences in the capacity of cells to support hematopoiesis (13).

More recently, a number of surface epitopes have been identified that can be used to enrich MSCs from bone marrow. For example, Pittenger et al. demonstrated that parental and clonal populations of human MSCs that exhibit the capacity for tri-lineage differentiation in vitro uniformly express the antigens CD73 and CD105 (9). However, these cells were noted to exhibit a decline in osteogenic and chondrogenic potential as a function of passage, which was not discernable by a change in surface phenotype (14). Populations with the capacity for osteogenic and adipogenic have also been enriched from bone marrow via positive selection for CD271 (15). Notably, the CD271^+ve cell fraction has also been shown to express CD34, CD133, platelet-derived growth factor receptor-beta (CD140b), HER-2/erbB2 (CD340), and frizzled-9 (CD349) (16). Perspective isolation of bone marrow cells based on selection for stage specific embryonic antigen 4 (SSEA-4) (17) or the pericyte marker CD146 (18) has also been reported to yield populations that are capable of generating heterotopic osseous tissue in vivo. When plated at clonal density, the SSEA-4^+ve cells generated a high percentage (∼75%) of clones that exhibit tri-lineage potential in vitro (18). Recently we analyzed the differentiation potential of human clones derived from parental populations that meet the recently established criteria for MSCs (19), and found that only about one in three clones were capable of tri-lineage differentiation ([K. O’Connor], unpublished data, 2009). Therefore, the term “mesenchymal stem cell” does not appear to accurately characterize populations utilized in most laboratories since they exhibit varying degrees of functional heterogeneity with respect to their differentiation potential.

Go to :

To better define the molecular phenotype of MSCs, my laboratory catalogued the transcriptome of human and murine populations via SAGE (Table 1). Initially, we sequenced 17,767 tags from a single cell-derived colony of human MSCs cultured under conditions that selected for high colony-forming efficiency and multi-potency (10), and subsequently sequenced 69,937 tags from mono-layer cultures (non-clonal) derived from the same donor. We also sequenced 59,007 tags from a population of primary mouse MSCs enriched from bone marrow via a method we developed based on immunodepletion. In the latter case, bone marrow cells were expanded in culture for 7∼ 10 days and then subjected to three rounds of immunodepletion using antibodies against CD11b, CD34, and CD45 (20). This approach yields a population of primary cells with a normal karyotype that are devoid of contaminating hematopoietic cells, expresses markers typical of MSCs including CD29, CD44, CD106, and Sca1, exhibit the capacity for tri-lineage differentiation in vitro, and bone formation in vivo. Consequently, enrichment of MSCs from mouse bone marrow via immunodepletion differs significantly from many other reported techniques, which typically rely on long-term culture expansion of plastic adherent cells to remove contaminating hematopoietic lineages and results in the generation of immortalized cell lines (21).

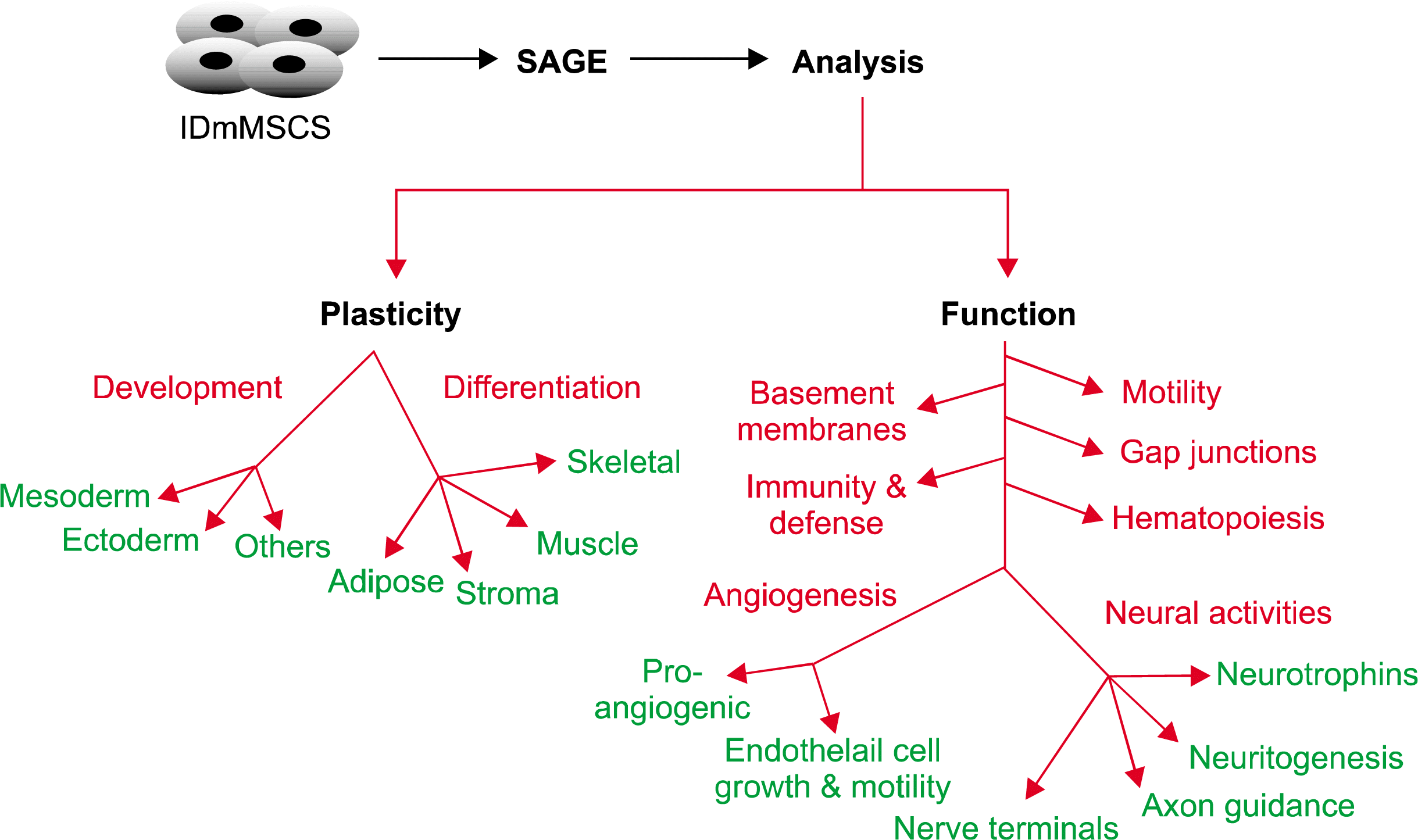

A detailed description of the aforementioned SAGE databases has been published previously (22–24). Analysis of these databases revealed that the MSC transcriptome reflected both the developmental potential of MSCs as depicted by the mesengenic process and a capacity to regulate a broad array of biological processes important for bone and marrow function (Fig. 1). In the former case a large number of transcripts were catalogued that play an important role in the specification of mesoderm during development and are also characteristically expressed by skeletal, adipose, and muscle tissue consistent with the capacity of cells to differentiate into various connective tissue cell types. In the latter case, MSCs were also found to express different classes of regulatory proteins important for angiogenesis, cell motility and communication, hematopoiesis, neural activities and immunity and defense. In the process of validating the SAGE data, it became evident that expression of different regulatory proteins was restricted to specific subpopulations of MSCs (24). Accordingly, we hypothesized that these subpopulations exhibit unique biological characteristics and as such contribute to the broad therapeutic efficacy of MSCs at the population level. Experimental findings recently published from my laboratory, summarized briefly below, support this hypothesis.

Go to :

Previously, my laboratory reported that immunodepleted MSCs injected intracranially into newborn mice durably engrafted and disseminated throughout a large volume of the brain, and that a small number of engrafted MSCs adopted characteristics of neural cells (25). Various groups have confirmed and extended these findings by demonstrating that MSCs exhibit some measurable degree of therapeutic efficacy in various animal models of neurologic disease (26). These findings have fostered the use of MSCs in clinical trials to treat stroke (27). Regardless, few if any studies have examined in detail the molecular mechanisms that govern MSC engraftment, survival, and migration within the CNS despite the fact that cells typically exhibit poor overall engraftment levels when transplanted to brain tissue.

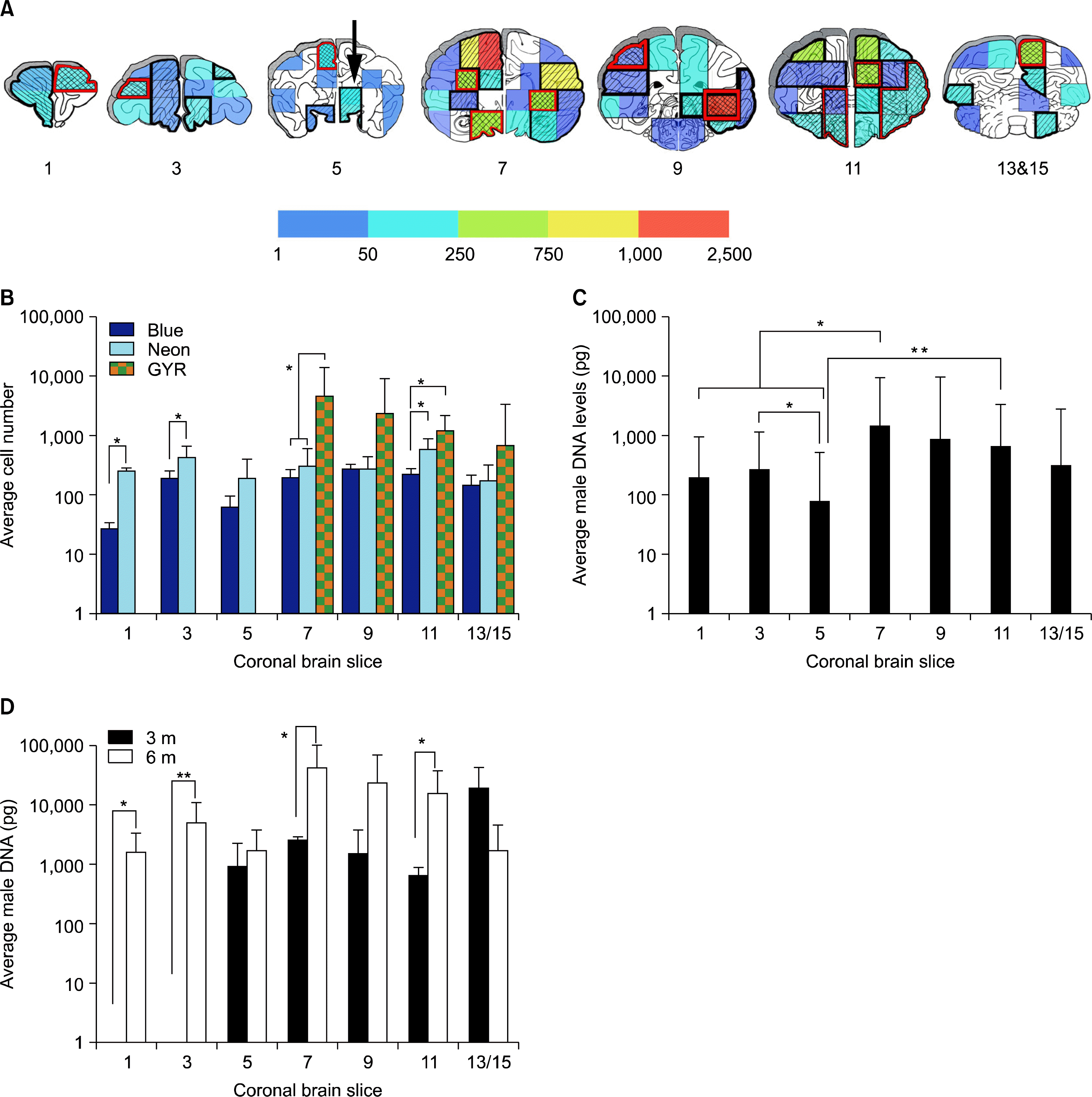

To explore this question in more detail, we quantified engraftment levels and analyzed the anatomical distribution of MSCs injected intracranially into newborn vs. adult mice over an extended time course (25, 28, 29). In these studies brain tissue harvested at various times post-injection was sliced into coronal sections and used to prepare genomic DNA, which was then analyzed via real-time PCR using a probe that hybridized to sequences in the mouse Y chromosome (28). This approach allowed the amount and distribution of male DNA to be quantified throughout the brains of female mice injected with male MSCs. These studies revealed several key facts about MSC engraftment in the brain. First, regardless of the age of the transplant recipient, only a small fraction of the total number of MSCs injected were detectable in brain several days post-transplant. Therefore, overall survival of MSCs in brain was poor even though injections were performed at relatively low cell densities (∼20,000 cells/μl). Second, significantly higher engraftment levels were observed at later time points in newborn vs. adult transplant recipients, which resulted from the preferential expansion of MSCs engrafted in the brains of newborn mice. This expansion, however, occurred predominantly during the first few months of post-natal life and appeared to parallel normal brain growth and development since at later time points (60∼150 days post-transplant) male DNA levels did not vary significantly between transplant recipients. This result was consistent with the complete absence of tumor formation, which in some cases was monitored up to 1 year post-transplant. Third, the anatomical distribution of engrafted MSCs in brain appeared non-random. This conclusion was based on the finding that the amount of male DNA, which was widely distributed along the brain neuraxis of both neonatal and adult transplant recipients, varied significantly between coronal brain slices of individual transplant recipients. Subsequent analysis of tissue sections using a fluorescent mouse Y chromosome paint probe confirmed that en-grafted male cells localized to specific anatomical structures such as the striatum, cerebral cortex, and granular layers of the hippocampus and cerebellum (29).

These experiments were repeated in Rhesus macaques as part of a pre-clinical study to evaluate the safety of direct intracranial transplantation of MSCs for a therapeutic intent (30, 31). Herein, unmatched MSCs from a universal male donor were injected intracranially into the caudate putamen of female recipients and at various times post-transplant affects on neural development, behavior, motor performance, and cognition were evaluated. As noted above, after sacrifice the brain tissue of each transplant recipient was cut into coronal slices, which were further sub divided into specimens of comparable size and anatomical location. Genomic DNA from these specimens was then analyzed using a real-time PCR assay that targets the Macaca sp. Y chromosome (30), and this data was transposed onto a physical map of the macaque brain to visualize the anatomical distribution of engrafted MSCs (31). Similar to that seen in mice, MSC engraftment levels were on average 17.8-fold higher in infant vs. young adult macaque recipients with a maximal observed difference of 180-fold. Moreover, male DNA was found to be widely distributed along the brain neuraxis, and its precise anatomical location overlapped significantly between transplant recipients in both age groups. Infant macaques exhibited the highest engraftment levels in tissue specimens encompassing the somato-sensory, primary motor, and auditory cortex, caudate putamen, striatum, and hippocampus. Moreover, engraftment levels averaged over all transplant recipients varied significantly between different anatomical locations in brain and as a function of time post-injection, indicating that cell engraftment was non-random (Fig. 2) (31). A battery of age- and species-appropriate tests failed to reveal any adverse affects of MSC transplantation on the general health of animals or their cognitive development, motor function or behavior even thought the tests were performed during the first year of life, a period of rapid development. Therefore, the procedure was well tolerated in both infant and young adult macaques.

Go to :

Similarities in the engraftment levels, kinetics, and anatomical distribution of MSCs injected into the brains of mice and Rhesus macaques suggested that a conserved mechanism regulated these processes. It is well established that adherent cells including MSCs must bind to specific extracellular matrix proteins via receptor mediated processes to ensure survival. Attachment to a given substrate invokes the formation of stress fibers that activate cytoskeletal signaling complexes to repress apoptosis (32). Although MSCs express receptors for an array of extra-cellular matrix proteins common in connective tissues including fibronectin, osteopontin, and collagens these proteins are expressed at low levels in brain, which may account for the poor survival of MSCs following direct intracranial transplantation.

To determine if MSCs express specific adhesion or receptor proteins that may facilitate engraftment in brain tissue, we again interrogated their transcriptome. This analyses revealed that MSCs expressed mRNAs encoding the neural adhesion molecules ninjurin 1 and cadherin 2 (CDH2) and the guidance receptor proteins neogenin 1 (NEO1), neuropilin 1 (NRP1), neuropilin 2 (NRP2), and roundabout homologs 1 (ROBO1) and 4 (ROBO4) (31). Several of these proteins have been previously shown to be expressed by marrow cells. For example, CDH2 plays an important role in modulating cell-to-cell adhesion and cellular differentiation of osteoblasts (33) and ROBO1 was reported to regulate leukocyte chemotaxis in response to secreted Slit proteins (34). We demonstrated that expression of the aforementioned proteins was conserved in mouse, non-human primate, and human MSCs, suggesting an important role of these proteins in bone and marrow (29, 31). Moreover, expression of these proteins was shown to be restricted to specific MSC subpopulations, which may impart cells with a unique capacity to engraft in brain and migrate in response to expressed guidance cues.

In support of this hypothesis, we demonstrated that binding of MSCs to plates coated with CDH2 or netrin 1 was dose dependent and could be specifically inhibited by soluble CDH2 or a neutralizing antibody against NEO1 (the receptor for netrin 1), respectively. Therefore, CDH2 and netrin 1 function as homo- and heterophilic adhesion molecules, respectively, in MSCs. MSC migration was also shown to be stimulated by semaphorin 3A or repulsive guidance molecule A, which are ligands for the NRP1 and NEO1 receptors, respectively, and inhibited by neutralizing antibodies to these receptors (31). Most recently we isolated a sub population of CDH2^+ve mouse MSCs and showed that following intracranial injection, these cells exhibit 3-fold higher engraftment levels as compared to CDH2^−ve cells ([DG Phinney] unpublished data, 2009). CDH2^+ve vs. CDH2^−ve cells also exhibited a non-overlapping distribution in the brain. These data are consistent with CDH2 playing a role in regulating MSC engraftment and/or migration within the CNS. Accordingly, the aforementioned subpopulations may represent novel cellular vectors that exhibit enhanced engraftment in brain and can be targeted to specific anatomical brain regions for a therapeutic intent.

Go to :

My laboratory in collaboration with researchers at the University of Pittsburgh was one of the first to report that systemic administration of MSCs ameliorated bleomycin-induced lung injury in mice (35). Initially, the mechanism for this affect was unclear, but appeared to be related to the timing of MSC administration following bleomycin challenge. Specifically, we found that the extent of inflammation and fibrosis in lung tissue was significantly reduced in mice that were administered MSCs at the time of bleomycin challenge as compared to those exposed to bleomycin alone. In stark contrast, the degree of inflammation and extent of fibrosis was unaltered if animals were administered MSCs seven days after bleomycin challenge. Therefore, MSCs exerted a prominent therapeutic effect during the early phase of lung injury when the inflammatory response is at a peak. Consequently, we interrogated the MSC transcriptome to determine if cells expressed proteins with anti-inflammatory activity. This analysis identified interluekin 1 receptor antagonist (IL1RN) as a potential candidate. The mouse transcriptome contained several SAGE tags corresponding to IL1RN, one of which ranked in the top 100 of all catalogued tags (36). Screening of a mouse MSC cDNA library confirmed that cells expressed transcripts encoding IL1RN, and ELISA analysis of conditioned media confirmed they secreted appreciable amounts of IL1RN protein. In addition, FACS analysis of whole bone marrow cells revealed that MSCs were the principle source of IL1RN in bone marrow, but that the protein was expressed by only 24% of the population. Similarly, we showed that approximately 5% of human MSCs also expressed IL1RN (36).

Subsequently, we demonstrated that MSC conditioned media containing known amounts of IL1RN was equally effective as purified, recombinant IL1RN protein in inhibiting the growth of an IL-1 dependent T lymphocyte cell line (D10.G4.1) in vitro. Moreover, this inhibitory effect of conditioned media could be completely abrogated by addition of a neutralizing anti-IL1RN antibody (36). Subsequently, we demonstrated that MSC administration abrogated the inflammatory response in vivo induced in lung tissue by exposure to bleomycin. Specifically, we showed that at 3 days post-exposure to bleomycin, bronchoalveolar lavage (BAL) fluid collected from animals administered bleomycin and MSCs contained significantly fewer neutrophils and lower levels of IL1RN protein as compared to animals challenged with bleomycin alone. Similarly, MSC administration inhibited expression of TNF-α, IL-1α, and IL1RN mRNA expression in lung tissue 7 and 14 days post-exposure, each of which were dramatically up regulated at these time points in response to bleomycin exposure.

Based on these data we proposed the following mechanism to explain, in part, the therapeutic effect of MSCs in a mouse model of pulmonary fibrosis (Fig. 3). Bleomycin exposure in mice is known to activate macrophages resident in lung tissue to secrete TNF-α and IL-1, which induce a pro-inflammatory signaling cascade resulting in recruitment of other immune cells into lung from the circulation. The infiltrating neutrophils and lymphocytes release other pro-inflammatory cytokines and proteases that augment the inflammatory response, alter the lung cyto-architecture, and induce apoptosis of resident alveolar epithelial cells. Based on our experimental data, we hypothesized that MSCs engrafted in lung secrete appreciable levels of IL1RN, and possibly other unidentified anti-inflammatory factors, which effectively short circuit the inflammatory response by antagonizing the activity of IL-1. This potent anti-inflammatory effect of MSCs is likely enhanced by the fact that the cells engraft within the lungs for prolonged periods after systemic injection (37, 38) and engraftment levels are further elevated in lung by BLM exposure (35). Our analysis also revealed that exposure to IL-1α up regulates expression of IL1RN in mouse MSCs (36). This finding is consistent with other studies showing that IL-1α positively regulates expression of IL1RN to counterbalance its potent activity in vivo (39). As such, IL1RN expression levels within the injured lung should be proportional to the amount of IL-1α activity induced in response to bleomycin exposure. This fact is consistent with our in vivo data, which revealed that animals administered MSCs at the time of bleomycin exposure maintained low levels of IL1RN expression in lung, providing further evidence that engrafted MSCs suppressed the inflammatory response. Recently, we have compared the cytokine/chemokine expression profile of IL1RN^+ve vs. IL1RN-ve human MSC subpopulations enriched by fluorescence activated cell sorting. This analysis revealed that IL1RN^+ve cells express chemokines that regulate chemotaxis of various immune cell types, whereas the IL1RN^−ve population expressed a large number of proteins related to the IL-1 family ([DG Phinney], unpublished data, 2009). Further characterization of these subpopulations should reveal further insight into how MSCs interact with the immune system and regulate inflammation induced by tissue injury.

Go to :

A rapidly growing body of literature has extolled the therapeutic effects of MSCs in various animal models of disease and in human clinical trials. Initially, the potency of MSCs in these applications was attributed to their stem cell-like characteristics. However, more recent data suggest that their therapeutic effect results from paracrine signaling, which alters the tissue microenvironment in a manner conducive to healing and regeneration. Our SAGE analysis of the MSC transcriptome provides mechanistic insight into these effects by demonstrating that MSC populations express a diverse array of regulatory proteins important for bone and marrow function but that may serendipitously promote tissue repair and regeneration following transplantation of MSCs to ectopic sites in vivo. For example, MSCs express a variety of neurotrophins, neurite inducing factors, and other neuro-regulatory proteins that likely participate in the maintenance of nervous tissue and guide the innervation of nerve fibers in bone and marrow during growth, remodeling, and reparation after injury. Some neuro-regulatory proteins are also known to effect the growth and differentiation of hematopoietic cells, as well. Expression of these factors likely contributes to the capacity of MSCs to promote repair of nervous tissue following spinal cord injury, stroke, or traumatic brain injury (26). Similarly, we have shown that MSCs express a variety of angiogenic factors and other proteins that regulate endothelial cell growth and motility (40). Co-operatively, these factors induce capillary proliferation and expansion of the sinusoidal space, processes essential for bone growth. They likely also contribute significantly to the therapeutic effect of MSCs following myocardial infarction. Additionally, IL-1α is known to be a potent mediator of bone turnover, providing a rationale for stromal subtypes that express IL1RN to modulate its activity in vivo. In the appropriate context, we have shown that IL1RN-expressing MSCs may have potent therapeutic effects by virtue of their ability to antagonize the activity of IL-1α and block the inflammatory response that ensues following tissue injury (35, 36). Despite the fact that MSC populations uniformly express various surface antigens, our data clearly demonstrate that populations are functionally heterogeneous and that this heterogeneity contributes to their broad therapeutic activity in vivo. Further analysis of the unique biology of these subpopulations will offer new insights into the complexity of marrow stroma and its varied functions, but may also generate sub-populations that function as more potent cellular vectors to treat disease.
