Abstract
Objectives
The purpose of this study is to suggest the indications and more ideal objective amount of corrections of for upper and lower curves.
Summary of Literature Review
There are many controversies exist about the diagnosis and treatment of double thoracic scoliosis yet.
Materials and Methods
Thirty- nine double thoracic scoliosis patients with left shoulder elevation and/or positive T1 tilt and an upper curve of 25 。or more were divided into two groups. Group I (24 patients) underwent fusion on both curves, and Group II (15 patients), on the lower curve alone. Cobb angles, T1 tilt, left first rib elevation (represents trapezial prominence), and shoulder level difference were measured from standing on pre- and postoperative standing films. The correction ratio [Upper curve correction(%)/Lower curve correction(%)] was used to represent describe how much the upper curve was had been corrected compared to versus the lower curve.
Results
T1tilt did not correlate well with left shoulder elevation, but correlated with left first rib elevation. In Group I, T1 tilt and left first rib elevation improved significantly after fusion of the upper curve, whereas these were aggravated in Group II. In Group I, most of the patients with the a correction ratio of more than 0.8, showed balanced shoulder levels finally.
Conclusions
In double thoracic scoliosis patients, T1 tilt and left first rib elevation should be considered in addition to not only left shoulder elevation and the rigidity of upper curve, but also the T1 tilt and left first rib elevation should be considered as the indication of the extension of fusion to upper curve. The amount of upper curve correction should be more than at least 80% of that of the lower curve for a balanced correction in the treatment of double thoracic scoliosis.
Go to :
REFERENCES
1). Ginsburg H, Goldstein L, De Vanny J, Haake P. An evaluation of the upper thoracic curve in idiopathic scoliosis: guidelines in selection of the fusion area. Presented at the Annual Meeting of the. Scoliosis Research Society: Hong Kong;October 1977.
2). King HA, Moe JH, Bradford DS, Winter RB. The selection of fusion levels in thoracic idiopathic scoliosis. J Bone Joint Surg. 65-A:1302–1313. 1983.
3). Lee CK, Denis F, Winter RB, Lonstein JE. Analysis of the upper thoracic curve in surgically treated idiopathic scoliosis. Spine. 18:1599–1608. 1993.
4). Lenke LG, Bridwell KH, O’ Brien MF, Baldus C, Blanke K. Recognition and treatment of the proximal thoracic curve in adolescent idiopathic scoliosis treated with Cotrel-Dubousset instrumentation. Spine. 19:1589–1597. 1994.
5). Moe JH, Kettleson DN. Idiopathic scoliosis: analy -sis of curve patterns and the preliminary results Milwau -kee brace treatment in one hundred sixty-nine patients. J Bone Joint Surg. 52-A:1509–1533. 1970.
6). Ponseti IV, Friedman B. Prognosis of idiopathic scoliosis. J Bone Joint Surg. 32-A:381–395. 1950.
7). Suk SI, Kim WJ, Lee CS, Lee SM, Kim JH, Chung ER, Lee JH. Indications of proximal thoracic curve fusion in thoracic adolescent idiopathic scoliosis. Spine. 25:2342–2349. 2000.
8). Suk SI, Lee CK, Kim WJ, Chung YJ, Park YB. Segmental pedicle screw fixation in the treatment of thoracic idiopathic scoliosis. Spine. 20(12):1399–1405. 1995.
9). Suk SI, Lee CK, Min HJ, Cho KH, Oh JH. Comparison of Cotrel-Dubousset pedicle screws and hooks in the treatment of idiopathic scoliosis. Int Orthop. 18(6):341–346. 1994.
10). Winter RB. The idiopathic double thoracic curve pat -tern: its recognition and surgical management. Spine. 14:1287–1292. 1989.
Go to :
Figures and Tables%

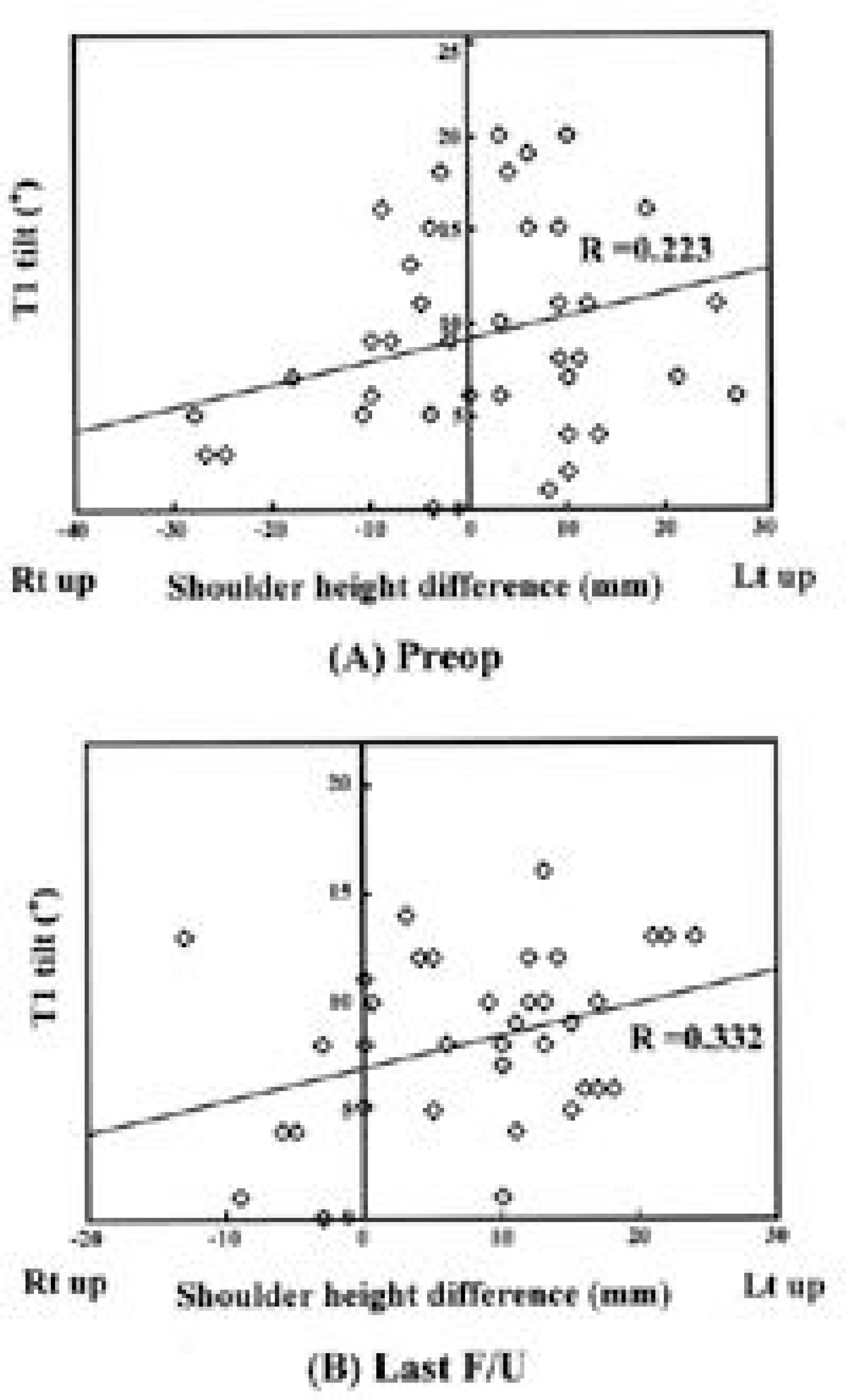

 | Fig. 1.T1 tilt vs. Shoulder level difference Positive T1 tilt did not correlate significantly with shoulder level either pre-or postoperatively, as has been reported previously. |

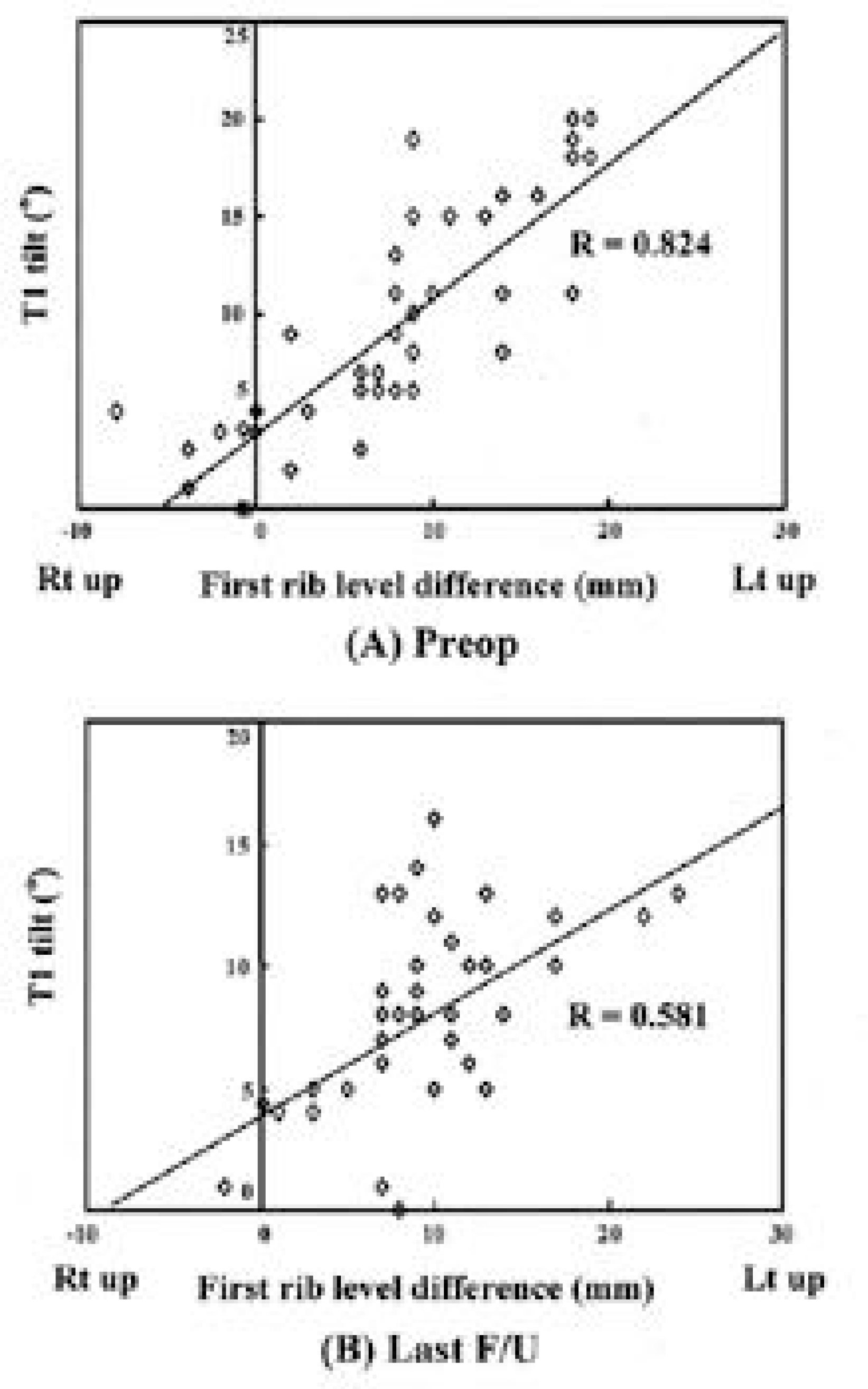

 | Fig. 2.T1 tilt vs First rib level difference Positive T 1 tilt correlated very well with left first rib elevation both pre-(P<0.001) and postoperatively(P<0.001). |

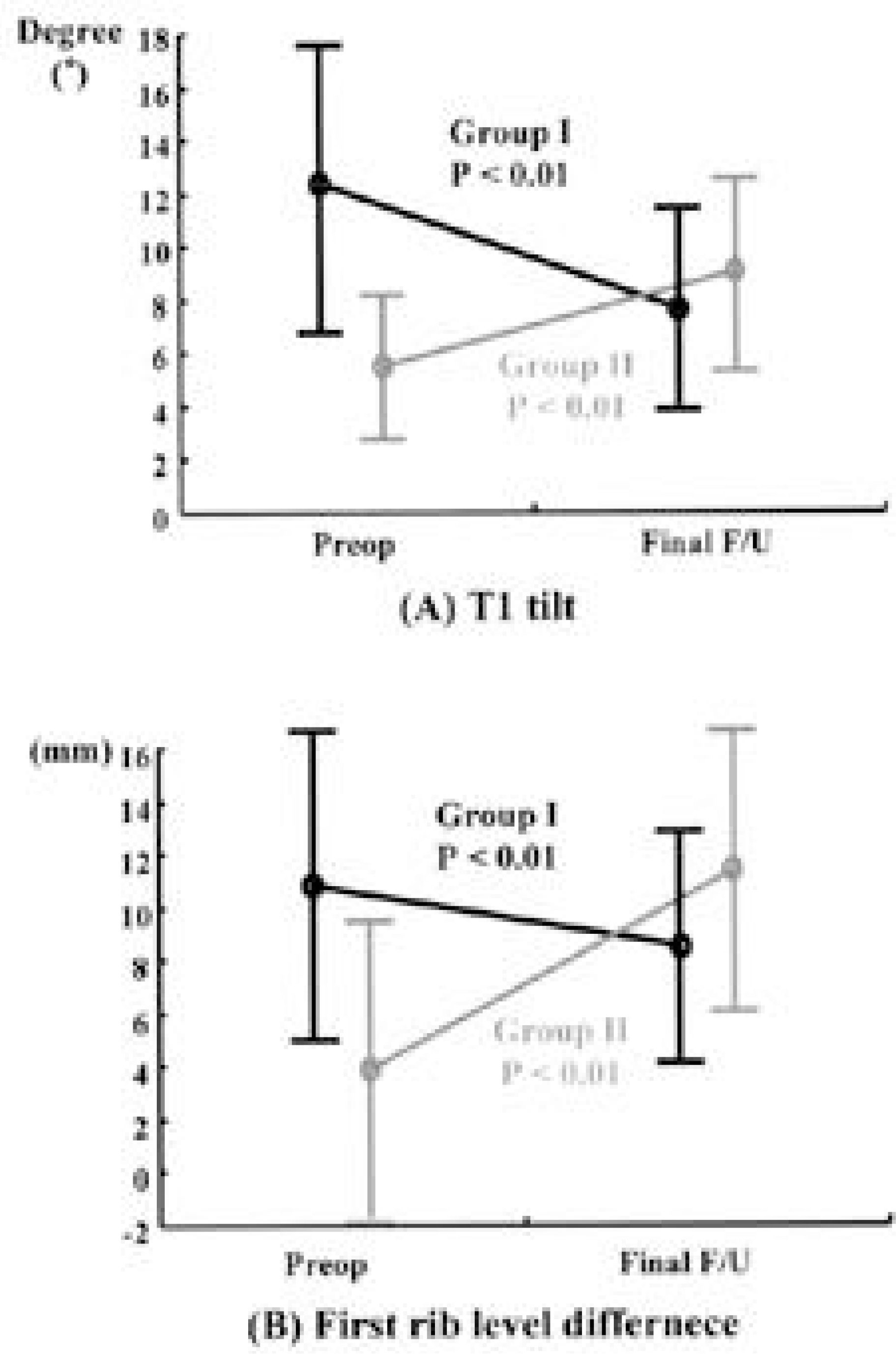

 | Fig. 3.Postoperative changes of T1 tilt and first rib level difference Positive T1 tilt and left first rib elevation improved postoperatively in those that underwent instrumentation/fusion over both the upper and lower curves, but increased in those that underwent fusion over only the lower curve. |

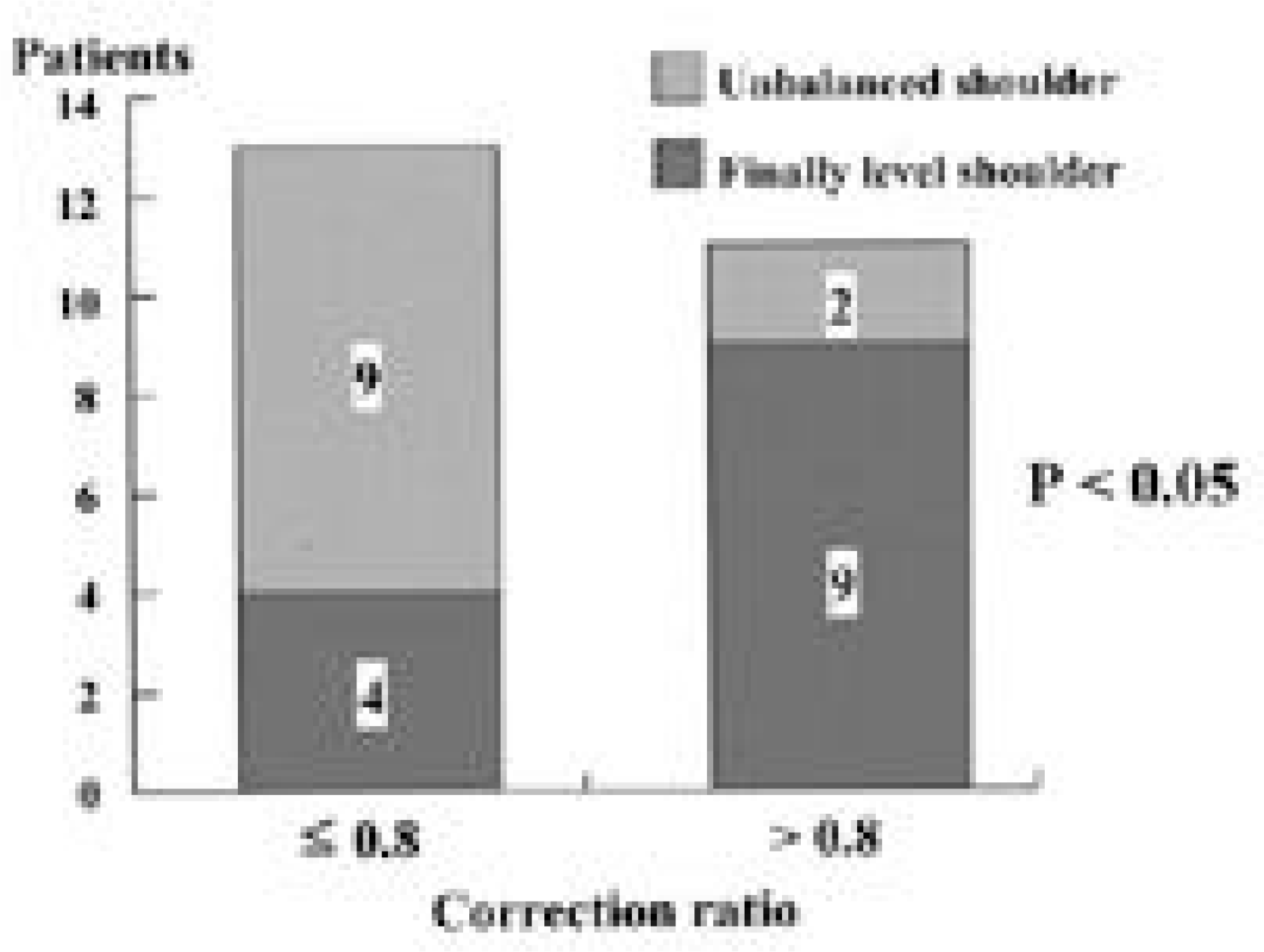

 | Fig. 4.Correction ratio and shoulder level in group I patients Nine out of 11 patients in the higher correction ratio (>0.8) sub-group had level shoulders finally, which meant a shoulder height difference of less than 10mm. However, only 4 of the 13 patients in the lower correction ratio (≤0.8) sub-group had balanced shoulders at final followup. This difference was statistically significant by the Chi-Square test (P<0.05). |
 | Fig. 5.This 12-year-old girl had right shoulder elevation initially. She underwent the fusion of only the lower thoracic curve. Postoperatively her left shoulder elevated 25mm more than right and at that time the correction ratio was 0.42. After the extension of fusion up to T1, she still had left shoulder elevation. The correction ratio was less than 0.8, which suggested the lower curve was corrected excessively. |
 | Fig. 6.This 12-year-old girl had left shoulder elevation. In order to avoid overcorrection of the lower curve, we corrected the right curve just to 32 degrees. The correction ratio was 1.21, that means less correction on the lower curve. Therefore, she had the balanced shoulder finally. |
 | Fig. 7.Although this 11-year-old girl had right shoulder elevation, she had also markedly elevated left first rib, preoperatively. She underwent the fusion of the lower curve alone. Although she got a balanced shoulder, however, T1 tilt, left first rib elevation, and trapezial fullness were aggravated after surgery |
