Integrated Electrophysiological and Optical Analysis of Human iPSC-Derived Cardiomyocytes Using Transparent ITO Microelectrode Chip

Seul-Gi Lee^1,^*

, Shinhye Park^1,^*

, C-Yoon Kim^1,

, Hyung Min Chung^2,

¹College of Veterinary Medicine, Konkuk University, Seoul, Korea

²Department of Stem Cell Biology, School of Medicine, Konkuk University, Seoul, Korea

Correspondence to C-Yoon Kim, College of Veterinary Medicine, Konkuk University, 120 Neungdong-ro, Gwangjin-gu, Seoul 05029, Korea, E-mail: vivavet@konkuk.ac.kr Co-Correspondence to Hyung Min Chung, Department of Stem Cell Biology, School of Medicine, Konkuk University, 120 Neungdong-ro, Gwangjin-gu, Seoul 05029, Korea, E-mail: hmchung@kku.ac.kr

Equal contributor:

^* These authors contributed equally to this work.

Received 29 August 2025 Revised 28 November 2025 Accepted 27 December 2025

(open-access):

This is an open-access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0), which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

Cardiotoxicity assessment is a crucial step in the drug development process. With growing interest in alternatives to animal testing, preclinical cardiotoxicity evaluation has become increasingly important. Human-induced pluripotent stem cell-derived cardiomyocytes (iPSC-CMs) offer a physiologically relevant in vitro model for this purpose. As a result, electrophysiological analysis platforms using iPSC-CMs have gained attention. However, conventional microelectrode array (MEA) chips rely on metal electrodes, which are costly and optically opaque. This lack of transparency limits detailed morphological observation of the cells. In this study, we employed an MEA chip incorporating transparent and conductive indium tin oxide (ITO) electrodes to simultaneously monitor both morphological changes and field potential (FP) of iPSC-CMs. iPSC-CMs cultured on ITO chips exhibited stable electrophysiological signals reflecting coupled depolarization and repolarization, along with self-organization. Short-term exposure to ion channel blockers did not induce noticeable morphological alterations; however, dose-dependent changes in FPs were observed. In contrast, treatment with cardiotoxic drugs resulted in morphological damage and reduced cell viability, accompanied by progressive alterations in key FP parameters over the treatment period. These findings demonstrate the potential of ITO-based MEA as next-generation cardiotoxicity evaluation platforms capable of real-time monitoring of both drug-induced electrophysiological responses and optical cellular changes.

Keywords: Induced pluripotent stem cells derived cardiomyocytes, Cardiotoxicity, Electrophysiological signal, Optical analysis, Transparent indium tin oxide microelectrode chip

Introduction

Drug-induced cardiotoxicity is a major cause of clinical trial failure and drug withdrawal (1, 2). Current preclinical assessments rely on ICH S7B/E14 guidelines using hERG assays and electrocardiogram (ECG) telemetry, which focus on QT prolongation. However, these have limited predictive value for complex arrhythmias due to interspecies differences and a single-ion channel approach (1, 2). As a promising alternative, human-induced pluripotent stem cell-derived cardiomyocytes (iPSC-CMs), which mimic human cardiac electrophysiology by reflecting multiple ion channel activities, are emerging as a valuable in vitro platform. The Comprehensive in vitro Proarrhythmia Assay (CiPA) initiative incorporates iPSC-CMs and ECG-like signal (field potential, FP) analysis to better predict pro-arrhythmic risk (1, 3). Currently, microelectrode array (MEA) is one of the primary tools used in CiPA for evaluating electrophysiological parameters. In line with these advances, the FDA Modernization Act 2.0 officially supports human cell-based nonclinical testing to overcome ethical and translational limitations of animal models, accelerating the shift toward human-relevant safety assessment platforms (1, 3, 4).

MEA systems are widely used to quantify electrophysiological signals from iPSC-CMs for evaluating cardiac parameters such as the QT interval (5, 6). These electrodes are typically composed of metals such as gold (Au), platinum (Pt), or titanium nitride (TiN), either individually or in combination, due to their excellent electrical conductivity, corrosion resistance, and mechanical stability (5 -7). However, these metal electrodes are opaque, making it difficult to monitor morphological changes in cells or perform real-time fluorescence imaging during drug testing (8, 9). Moreover, the use of high-cost metals increases the overall manufacturing cost of MEA, limiting their feasibility for repeated toxicity testing (9, 10). To address these limitations, transparent electrodes made from indium tin oxide (ITO), which offer both optical transparency and high conductivity, have recently been introduced into MEA platforms. ITO-based MEAs support imaging, long-term recording, and low-cost fabrication, making them suitable for next-generation platforms (9, 11, 12). Nevertheless, studies utilizing ITO-based MEAs for cardiotoxicity evaluation remain limited, and further validation is needed to establish their applicability and reliability as a standardized assessment platform.

This study assessed an ITO-based MEA platform that enables both electrophysiological analysis and real-time optical observation, addressing limitations of traditional metal electrodes. iPSC-CMs were cultured on transparent ITO electrodes, and both morphological and electrophysiological signals were monitored. Drug responsiveness was evaluated under short- and long-term exposure to ion channel blockers and cardiotoxic agents. Drug effects were assessed by combining FP, cell viability, and morphological analysis. These findings suggest ITO-based MEAs as promising tools for integrated cardiotoxicity screening.

Materials and Methods

Generation of human iPSC-CMs

iPSCs were generated by reprogramming BJ fibroblasts (ATCC) using episomal vectors, as previously described (13). iPSCs were seeded on Matrigel (Corning Inc.)-coated dishes in mTeSR^TM1 medium (STEMCELL Technologies Inc.) supplemented with 10 μM Y-27632 (Tocris Bioscience). Medium was changed daily until ∼90% confluency. Mesodermal differentiation was induced by treating cells with RPMI 1640 containing B27 minus insulin (B27(−); Gibco) and 6 μM and 3 μM CHIR99021 (Tocris Bioscience) for two days. Cardiac progenitors were induced with RPMI 1640＋B27(−) containing 2 μM and 1 μM C59 (Selleckchem). From day 4 to 10, cells were cultured in Advanced Minimum Essential medium (AD-MEM; Gibco) with antibiotics and GlutaMAX (Gibco), with medium changes every two days until beating cells appeared. Beating cells were dissociated with TrypLE (Gibco) and replated on Matrigel. On day 12, metabolic selection using glucose-free RPMI with B27 and 4 mM sodium DL-lactate (Gibco) was performed for 6 days to enrich CMs. After purification, iPSC-CMs were maintained in fresh AD-MEM until day 30 for maturation (1, 14 -16).

Flow cytometry analysis (fluorescence-activated cell sorting)

iPSC-CMs were fixed with 4% paraformaldehyde (PFA) for 20 minutes at room temperature (RT), washed, and resuspended in fluorescence-activated cell sorting (FACS) buffer. Cells were stained with PE-conjugated anti-cTnT antibody (1：50; Thermo Fisher Scientific) for 30 minutes at 4℃, then analyzed using a FACS Calibur flow cytometer with Cell Quest software (BD Biosciences).

Immunocytochemistry

iPSC-CMs were fixed with 4% PFA for 20 minutes at 4℃. Cells were then permeabilized and blocked in phosphate buffered saline (PBS) containing 0.1% Triton X-100 (Sigma-Aldrich) and 3% normal goat serum (Thermo Fisher Scientific) for 30 minutes at RT. Cells were incubated overnight at 4℃ with primary antibodies against cTnT (1：200; Abcam, ab45932), α-actinin (1：200; Sigma-Aldrich, A7811), MLC2v (1：200; Synaptic System, #310 003), and MLC2a (1：200; Synaptic System, #311 011). After washing, cells were incubated for 2 hours at RT on a shaker with secondary antibodies (Alexa Fluor 488 goat anti-mouse IgG and Alexa Fluor 594 goat anti-rabbit IgG [1：700; Invitrogen]). Nuclei were counterstained with DAPI (1：1,000; Thermo Fisher Scientific). Fluorescence images were acquired using a Nikon TE2000-U microscope (Nikon).

Live/dead assay

Cell viability was evaluated using the LIVE/DEAD^Ⓡ Viability/Cytotoxicity Kit (Invitrogen). iPSC-CMs were washed with PBS and incubated for 30 minutes in culture medium containing 2 μM calcein AM (C-AM) and 4 μM ethidium homodimer-1 (EthD-1). Fluorescence was detected using FITC (C-AM) and TRITC (EthD-1) channels under a fluorescence microscope. ImageJ was used to quantify fluorescence, and the ratio of C-AM to EthD-1 was calculated.

Preparation of chemicals

E-4031 (Sigma-Aldrich), nifedipine (Sigma-Aldrich), and doxorubicin (DOX, Sigma-Aldrich) were dissolved in dimethyl sulfoxide (DMSO; Sigma-Aldrich). Each drug was prepared at 10× the working dose in DMSO and diluted in culture medium before use. The final DMSO dose was kept below 0.1%, which is considered non-cytotoxic. For comparison with the experimental groups, 0.1% DMSO was designated as the control (CTL).

Electrophysiological signal analysis in ITO microelectrode array (ITO-MEA)

iPSC-CMs were seeded onto CFPS-ITO-16W2E MEA plates (Cellames). Prior to cell seeding, 5 μL of 50 μg/mL fibronectin (Sigma-Aldrich) was applied to each ITO electrode well and incubated for 1 hour in a CO₂ incubator. After removing fibronectin, 5 μL droplets containing 50,000 cells were added to each well. Following a 2-hour incubation, 200 μL of fresh culture medium was added. Cells were cultured for 5∼6 days in a CO₂ incubator to allow stabilization before MEA recordings. For FP analysis using the ITO MEA plates, the medium was replaced with AD-MEM 1 hour before recording. Plates were inserted into the CFPS-32 system (Cellames) within a CO₂ incubator. After 17 minute-stabilization, baseline FP signals were recorded for 3 minutes. For Strategy 1 (acute drug response), 20 μL of medium was removed from each well and replaced with 20 μL of a 10× drug solution corresponding to the first dose (Dose 1), determined based on the reference value and Cmax. Subsequent dosing was performed stepwise with progressively increasing doses (E-4031: 3× and 10×; nifedipine: 10× and 100×). After each dosing step, cells were incubated for 17 minutes, followed by a 3-minute FP recording. For Strategy 2 (chronic drug response), 20 μL of medium was removed only on day 0 after stabilization in both the CTL and DOX groups and replaced with 20 μL of a 10× drug solution. FP was recorded on days 0, 1, and 2. All data were analyzed using the CFPS-32 software (Cellames).

Calcium transient imaging

To assess calcium transients in iPSC-CMs cultured on ITO chips, cells were incubated with 5 μM Fluo-4 AM (Invitrogen) and 0.02% Pluronic F-127 for 30 minutes. The cells were then washed once with fresh culture medium. Fluorescence signals were acquired using a Nikon TE2000-U microscope in the FITC channel, and videos were recorded around the ITO electrode region in each well. The acquired images were analyzed in ImageJ by selecting regions of interest (ROI) and extracting frame-by-frame fluorescence intensity. Calcium amplitude over time was quantified as F/F₀ and ΔF/F₀, where F represents the fluorescence intensity at each frame and F₀ is defined as the baseline fluorescence intensity within the ROI across all frames (17).

Statistical analysis

All the experiments were performed at least three times. Statistical analyses were performed with ANOVA one-way for comparisons between groups. Quantitative data are presented as the mean±standard error of the mean (SEM). A p-value (p<0.05, p<0.01, and p<0.001) was considered statistically significant. Based on previously published reports, a prolongation of corrected FPD (FPDc) exceeding 20% has been identified as falling within the pre-arrhythmic risk range (16). Accordingly, reflecting these findings, we defined a ≥20% change as the threshold for a meaningful response and indicated it with red circle (O). Data histograms were fit with GraphPad Prism, version 10.

Results

Characterization of iPSC-CMs

iPSC-CMs were generated using a previously established small molecules–based differentiation protocol (Fig. 1A) (1, 14 -16). The D30 iPSC-CMs exhibited regular spontaneous beating (Fig. 1B and Supplementary Video S1), and FACS analysis revealed that 97.06% of the cells expressed the CM-specific marker cTnT (Fig. 1C). Furthermore, co-staining for cTnT and α-actinin (z-disc marker) demonstrated that iPSC-CMs co-expressed both markers and exhibited sarcomeric structures (Fig. 1D). To further assess whether the differentiated cells were of ventricular subtype, co-staining for MLC2v and MLC2a was performed. The results showed that most cells predominantly expressed MLC2v, with negligible expression of MLC2a (Fig. 1E). Collectively, these findings demonstrate that the in-house–generated iPSC-CMs not only express CM-specific markers but also differentiate into a ventricular subtype, thereby representing highly purified CMs suitable for cardiotoxicity assessment.

Optical and electrophysiological analysis of iPSC-CMs in ITO MEA

For electrophysiological signal-based drug screening, iPSC-CMs were first seeded onto ITO chips and stabilized for 5 days (Fig. 2A). The seeded iPSC-CMs showed clear morphological features even when positioned on the circular electrodes of the ITO chip (Fig. 2B and Supplementary Video S1). Subsequently, Fluo-4 AM-based calcium transient imaging was performed to assess the functional activity of iPSC-CMs (Fig. 2C). Clear intracellular calcium flux corresponding to the contraction–relaxation cycle of iPSC-CMs was observed (Fig. 2D). Quantification of calcium amplitude using F/F₀ and ΔF/F₀ metrics yielded values of 1.577±0.080 and 0.577±0.080, respectively (Fig. 2E, 2F). Prior to drug testing, the detection of FP signal was evaluated, and most wells exhibited stable depolarization/repolarization coupling in the FP raw waveforms, reflecting regular QRST-like patterns (Fig. 2G) (18). The primary parameters of FP analysis include the spike amplitude (SA), beat period (BP), field potential duration (FPD), and FPDc. SA represents the potential difference of ions in depolarization. BP represents the interval between two consecutive depolarizations, while FPD corresponds to the interval between depolarization and repolarization, which is analogous to the QT interval on an ECG. FPDc denotes the FPD corrected by Fridericia’s formula, the most widely used correction method in cardiotoxicity testing. In stabilized iPSC-CMs, the FP parameters were measured as follows: BP, 1.498±0.037 seconds; FPD, 0.320±0.006 seconds; FPDc, 0.280±0.003 seconds; and SA, 1.712±0.186 mV (Fig. 2H-2K). These results demonstrate that ITO electrodes enable not only the morphological monitoring of iPSC-CMs but also the acquisition of well-quantified electrophysiological signals.

Assessment of torsades de pointes (TdP) risk drugs induced cardiotoxicity using ITO MEA

Cardiac safety pharmacological evaluation using ion channel blockers was conducted via dosing method (Strategy 1 in Fig. 2A) (1, 19). To confirm that the observed effects were attributable to drug treatment rather than environmental factors, vehicle control was first applied using 0.1% DMSO, a non-cytotoxic dose. No significant changes were observed in the raw waveforms compared to baseline, and main FP parameters varied by less than 5% (Fig. 3A). Drug evaluation was performed using representative reference compounds, E-4031 and nifedipine (1, 19). E-4031, a class III antiarrhythmic agent known as a hERG channel blocker, was applied at doses of 0.003, 0.01, and 0.03 μM. BP was significantly increased by 43.715%±5.639% only at 0.03 μM, while FPD (0.003 μM, 17.920%±1.746%; 0.01 μM, 56.301%±2.356%; and 0.03 μM, 154.292%±8.537%) and FPDc (0.003 μM, 18.837%±1.604%; 0.01 μM, 54.560%±2.543%; and 0.03 μM, 125.798%±7.420%) were prolonged in a dose-dependent manner, as confirmed in the raw waveforms. In contrast, SA decreased in a dose-dependent manner (0.003 μM, −5.635%±4.080%; 0.01 μM, −26.535%±6.524%; and 0.03 μM, −40.936%±7.338%) (Fig. 3B). Nifedipine, an L-type Ca^2＋ channel inhibitor used for the treatment of hypertension and angina, was applied at Cmax (0.008 μM) and at higher doses of 0.08 μM and 0.8 μM. The results demonstrated a dose-dependent decrease in BP (0.08 μM, −28.174%±0.748%; and 0.8 μM, −51.567%±0.333%), FPD (0.08 μM, −33.879%±3.143%; and 0.8 μM, −70.417%±1.936%), and FPDc (0.08 μM, −26.280%±3.282%; and 0.8 μM, −62.439%±2.373%), consistent with observations in the raw waveforms. No significant difference was observed in SA (Fig. 3C). Morphological comparison after the highest dose treatment revealed changes in the beating pattern between groups, but no significant alterations in cell morphology were observed (Fig. 3D). In summary, ion channel blockers exerted pronounced effects on the electrophysiological function of iPSC-CMs even after short-term exposure, while having minimal impact on cellular morphology.

Monitoring cardiotoxic responses to DOX using ITO MEA

DOX, an anticancer agent, is known to induce apoptosis in CMs and is a representative drug that causes cardiotoxicity (20, 21). In this study, DOX was treated at a dose of 3 μM for 2 days, considering its half-life (Strategy 2 in Fig. 2A) (21). The CTL group was treated with 0.1% DMSO, and FP signals were monitored in both CTL and DOX groups at D0, D1, and D2 (Fig. 4A). In the CTL, no significant changes were observed in FP raw waveforms, and the T wave remained stable. In contrast, the DOX-treated group showed rapid waveform alterations over time, with a marked prolongation of the T wave (Fig. 4A). Quantitative analysis revealed that BP, FPD, FPDc, and SA remained stable across all time points in the CTL group (Fig. 4B-4E). However, in the DOX group, BP exhibited a sharp and significant increase at D1 (CTL: 1.961±0.023 seconds vs. DOX: 8.213±0.761 seconds), and although the extent of increase was slightly reduced at D2 (CTL: 1.678±0.005 seconds vs. DOX: 4.177±0.454 seconds), it remained significantly prolonged compared with CTL (Fig. 4B). FPD was significantly prolonged in a time-dependent manner in the DOX group (D0, 0.382±0.008 seconds; D1, 0.448±0.003 seconds; and D2, 0.495±0.011 seconds) relative to CTL (D0, 0.392±0.007 seconds; D1, 0.406±0.010 seconds; and D2, 0.403±0.010 seconds) (Fig. 4C), whereas FPDc showed a pronounced decrease at D1 due to the sharp BP prolongation and subsequently exhibited partial recovery at D2 (Fig. 4D). In addition, compared with CTL, DOX caused a sharp decrease in SA from D1, which persisted on D2 (Fig. 4E). Morphological analysis using the ITO chip revealed that, unlike ion channel blockers, DOX treatment led to a reduction in iPSC-CMs density (Fig. 4F). Furthermore, live/dead assays demonstrated increased EthD-1 expression and decreased cell viability in the DOX group compared with CTL (Fig. 4G). Immunostaining of α-actinin (a z-disc marker in CMs) showed that sarcomeric structures were well observed in the CTL, whereas sarcomeres were disintegrated in the DOX (Fig. 4H). Collectively, these results demonstrate that ITO chip–based monitoring can reveal that DOX-induced prolongation of BP and FPD is not limited to functional alterations but is accompanied by cytotoxicity and structural damage in CMs (Supplementary Video S2).

Discussion

Ensuring cellular quality is a fundamental prerequisite for reliable preclinical safety evaluation (1, 22). Since iPSC-derived cells require differentiation prior to use, lot-to-lot variation can occur depending on institution-specific protocols (23). In this study, in-house iPSC-CMs achieved >90% cTnT-positivity and ventricular-like morphology, closely resembling commercially available cells used in CiPA studies (Fig. 1) (23). Because iPSC-CMs intrinsically recapitulate electrophysiological activity, MEA platforms have become central to functional readouts (19, 22, 24). However, differences in MEA chip composition and recording hardware may alter absolute signal values (19, 22, 25). Establishing robust quality control (QC) thresholds is therefore indispensable. According to CiPA-reported QC criteria, MEA-based assays should satisfy: (1) spontaneous beat rate (BR) within 20∼90 bpm, (2) baseline BR values across wells within ±6 standard deviation of the mean, and (3) SA ≥0.3 mV (3, 22). Consistent with these standards, our iPSC-CMs exhibited SA ≥0.3 mV and a BP of 1.498±0.037 seconds (approximately 40 bpm), confirming that ITO-based MEA chips provide sufficient functional quality for reliable analysis (Fig. 2). These findings show that QC criteria are applicable across platforms, ensuring reproducible drug assessments.

Current cardiac safety pharmacology frameworks, including ICH S7B/E14 guidelines and the CiPA initiative, emphasize electrophysiological signal analysis (3, 26). The CiPA paradigm integrates multi-ion channel analysis, in silico modeling, ventricular iPSC-CMs, and in vivo ECG to assess torsadogenic risk associated with QT prolongation (3). Most MEA-based reports have validated short-term drug responses (25∼40 minutes exposure) across varying doses by monitoring FP alterations (1, 19, 22). Yet, the clinical reality is that many agents are administered chronically, and long-term cardiotoxicity remains underexplored (2, 27). For instance, pentamidine induces negligible FPD changes acutely, but manifests >100% prolongation after 72 hours (27). Chronic drug exposure may induce cytotoxicity, triggering apoptosis, mitochondrial dysfunction, and secondary electrophysiological changes (27 -29). Clinically relevant tyrosine kinase inhibitors such as sunitinib and vandetanib exemplify this phenomenon, showing modest acute FPD changes (<40%) but pronounced FPD prolongation (>100%) and cytotoxicity after prolonged exposure (27). In line with this, our study demonstrated that 3 μM DOX treatment for 2 days induced apoptosis and disruption of CMs structure, accompanied by FP instability (Fig. 4). While FPD was continuously prolonged, BP exhibited a sharp increase on D1 followed by partial attenuation on D2 (Fig. 4). The terminal elimination half-life of DOX has been reported to be approximately 20∼48 hours, and previous studies have shown that toxic responses are alleviated in accordance with these pharmacokinetic characteristics (30, 31). In vivo studies have demonstrated that intracellular DOX uptake and apoptosis in CMs peak on the first day and decline thereafter. Considering this pharmacodynamic pattern, certain cardiotoxicity-related parameters may reflect a recovery phase following the initial acute toxicity peak, during which intracellular DOX accumulation and associated toxic signaling are partially alleviated. Notably, these responses on the ITO-MEA chip resemble clinical observations in DOX-treated patients, including CM apoptosis, bradycardia, and QT prolongation (20, 28). Collectively, these findings suggest that cardiotoxicity assessment should encompass not only electrophysiological alterations but also side effects such as cytotoxicity (28, 32, 33). Importantly, ITO chips present an attractive alternative to conventional systems, offering cost-effectiveness and enabling simultaneous electrophysiological and optical monitoring (9).

Despite these advantages, significant challenges remain. Conventional iPSC-CMs retain an immature phenotype, and 2D monolayers insufficiently capture tissue-level electromechanical interactions (34 -36). Advances in maturation strategies and the adoption of 3D engineered cardiac tissues are critical to bridging this gap (15, 34 -36). Furthermore, expanding beyond FP and optical monitoring to encompass contractility and Ca^2＋ handling would markedly enhance translational fidelity (22, 37). In summary, rigorous QC of iPSC-CMs combined with dual monitoring on ITO-based MEA chips offers a promising strategy for advancing cardiotoxicity assessment. Looking forward, integrating electrophysiological, optical, mechanical, and biochemical readouts into unified platforms could transform preclinical cardiac safety testing.

Supplementary Materials

Supplementary data including two videos can be found with this article online at https://doi.org/10.15283/ijsc25077

ijsc-19-2-146-supple.pdf

Notes

Potential Conflict of Interest

There is no potential conflict of interest to declare.

Availability of Data and Materials

All data generated or analyzed during this study are included in this published article.

Authors’ Contribution

Conceptualization: SGL, SP. Formal analysis: SGL, SP. Investigation: SGL, SP. Methodology: SGL, SP. Supervision: CYK, HMC. Validation: SGL, SP. Visualization: SGL, SP. Writing – original draft: SGL, SP. Writing – review and editing: SGL, SP, CYK, HMC.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (RS-2025–00559450), and by the Industrial Strategic Technology Development Program (RS-2024-00448561) funded by the Ministry of Trade, Industry & Energy (MOTIE, Korea) in 2025. This paper was supported by the KU Research Professor Program of Konkuk University.

References

1. Lee SG, Kim J, Oh MS, et al. 2021; Development and validation of dual-cardiotoxicity evaluation method based on analysis of field potential and contractile force of human iPSC-derived cardiomyocytes /multielectrode assay platform. Biochem Biophys Res Commun. 555:67–73. DOI: 10.1016/j.bbrc.2021.03.039. PMID: 33813278.

2. Ferdinandy P, Baczkó I, Bencsik P, et al. 2019; Definition of hidden drug cardiotoxicity: paradigm change in cardiac safety testing and its clinical implications. Eur Heart J. 40:1771–1777. DOI: 10.1093/eurheartj/ehy365. PMID: 29982507. PMCID: PMC6554653.

3. Colatsky T, Fermini B, Gintant G, et al. 2016; The Comprehensive In Vitro Proarrhythmia Assay (CiPA) initiative - update on progress. J Pharmacol Toxicol Methods. 81:15–20. DOI: 10.1016/j.vascn.2016.06.002. PMID: 27282641.

4. Han JJ. 2023; FDA Modernization Act 2.0 allows for alternatives to animal testing. Artif Organs. 47:449–450. DOI: 10.1111/aor.14503. PMID: 36762462.

5. Tanwar A, Gandhi HA, Kushwaha D, Bhattacharya J. 2022; A review on microelectrode array fabrication techniques and their applications. Mater Today Chem. 26:101153. DOI: 10.1016/j.mtchem.2022.101153.

6. Ahmadvand T, Mirsadeghi S, Shanehsazzadeh F, Kiani S, Fardmanesh M. 2020; A novel low-cost method for fabrication of 2D multi-electrode array (MEA) to evaluate functionality of neuronal cells. Proceedings. 60:51. DOI: 10.3390/IECB2020-07087.

7. de Haro C, Mas R, Abadal G, Muñoz J, Perez-Murano F, Dominguez C. 2002; Electrochemical platinum coatings for improving performance of implantable microelectrode arrays. Biomaterials. 23:4515–4521. DOI: 10.1016/S0142-9612(02)00195-3. PMID: 12322971.

8. Huang Z, Jia K, Tan Y, et al. 2025; Advances in cardiac organoid research: implications for cardiovascular disease treatment. Cardiovasc Diabetol. 24:25. DOI: 10.1186/s12933-025-02598-8. PMID: 39827092. PMCID: PMC11743075.

9. Li Z, Niu K, Zhou C, et al. 2024; Multifunctional cardiac microphysiological system based on transparent ITO electrodes for simultaneous optical measurement and electrical signal monitoring. Lab Chip. 24:1903–1917. DOI: 10.1039/D3LC00908D. PMID: 38385159.

10. Zhang H, Wang P, Huang N, et al. 2023; Single neurons on microelectrode array chip: manipulation and analyses. Front Bioeng Biotechnol. 11:1258626. DOI: 10.3389/fbioe.2023.1258626. PMID: 37829565. PMCID: PMC10565505.

11. Sakamoto K, Kuwae H, Kobayashi N, Nobori A, Shoji S, Mizuno J. 2018; Highly flexible transparent electrodes based on mesh-patterned rigid indium tin oxide. Sci Rep. 8:2825. DOI: 10.1038/s41598-018-20978-x. PMID: 29434296. PMCID: PMC5809474.

12. Moon SH, Cho YW, Shim HE, et al. 2020; Electrically stimulable indium tin oxide plate for long-term in vitro cardiomyocyte culture. Biomater Res. 24:10. DOI: 10.1186/s40824-020-00189-0. PMID: 32514370. PMCID: PMC7251917.

13. Bang JS, Choi NY, Lee M, et al. 2018; Optimization of episomal reprogramming for generation of human induced pluripotent stem cells from fibroblasts. Anim Cells Syst (Seoul). 22:132–139. DOI: 10.1080/19768354.2018.1451367. PMID: 30460090. PMCID: PMC6138300.

14. Lee SG, Song GE, Seok J, et al. 2024; Evaluation of the cardiotoxicity potential of bisphenol analogues in human induced pluripotent stem cells derived cardiomyocytes. Ecotoxicol Environ Saf. 272:116108. DOI: 10.1016/j.ecoenv.2024.116108. PMID: 38364764.

15. Lee SG, Rhee J, Seok J, et al. 2024; Promotion of maturation of human pluripotent stem cell-derived cardiomyocytes via treatment with the peroxisome proliferator-activated receptor alpha agonist Fenofibrate. Stem Cells Transl Med. 13:750–762. DOI: 10.1093/stcltm/szae029. PMID: 38946019. PMCID: PMC11328931.

16. Lee SG, Kim Y, Park SW, et al. 2025; Evaluation of phthalates induced cardiotoxicity using human iPSCs-derived cardiomyocyte and dual-cardiotoxicity evaluation methods. Ecotoxicol Environ Saf. 296:118196. DOI: 10.1016/j.ecoenv.2025.118196. PMID: 40262243.

17. Sridhar KC, Hersch N, Dreissen G, Merkel R, Hoffmann B. 2020; Calcium mediated functional interplay between myocardial cells upon laser-induced single-cell injury: an in vitro study of cardiac cell death signaling mechanisms. Cell Commun Signal. 18:191. DOI: 10.1186/s12964-020-00689-5. PMID: 33371897. PMCID: PMC7771078.

18. Navarrete EG, Liang P, Lan F, et al. 2013; Screening drug-induced arrhythmia [corrected] using human induced pluripotent stem cell-derived cardiomyocytes and low-impedance microelectrode arrays. Circulation. 128(11 Suppl 1):S3–S13. DOI: 10.1161/CIRCULATIONAHA.112.000570. PMID: 24030418. PMCID: PMC3855862.

19. Millard D, Dang Q, Shi H, et al. 2018; Cross-site reliability of human induced pluripotent stem cell-derived cardiomyocyte based safety assays using microelectrode arrays: results from a blinded CiPA pilot study. Toxicol Sci. 164:550–562. DOI: 10.1093/toxsci/kfy110. PMID: 29718449. PMCID: PMC6061700.

20. Linders AN, Dias IB, López Fernández T, Tocchetti CG, Bomer N, Van der Meer P. 2024; A review of the pathophysiological mechanisms of doxorubicin-induced cardiotoxicity and aging. NPJ Aging. 10:9. DOI: 10.1038/s41514-024-00135-7. PMID: 38263284. PMCID: PMC10806194.

21. Rawat PS, Jaiswal A, Khurana A, Bhatti JS, Navik U. 2021; Doxorubicin-induced cardiotoxicity: an update on the molecular mechanism and novel therapeutic strategies for effective management. Biomed Pharmacother. 139:111708. DOI: 10.1016/j.biopha.2021.111708. PMID: 34243633.

22. Blinova K, Dang Q, Millard D, et al. 2018; International multisite study of human-induced pluripotent stem cell-derived cardiomyocytes for drug proarrhythmic potential assessment. Cell Rep. 24:3582–3592. DOI: 10.1016/j.celrep.2018.08.079. PMID: 30257217. PMCID: PMC6226030.

23. Huo J, Kamalakar A, Yang X, et al. 2017; Evaluation of batch variations in induced pluripotent stem cell-derived human cardiomyocytes from 2 major suppliers. Toxicol Sci. 156:25–38. DOI: 10.1093/toxsci/kfw235. PMID: 28031415.

24. Gintant G, Kaushik EP, Feaster T, et al. 2020; Repolarization studies using human stem cell-derived cardiomyocytes: validation studies and best practice recommendations. Regul Toxicol Pharmacol. 117:104756. DOI: 10.1016/j.yrtph.2020.104756. PMID: 32822771.

25. Jahnke HG, Schmidt S, Frank R, Weigel W, Prönnecke C, Robitzki AA. 2019; FEM-based design of optical transparent indium tin oxide multielectrode arrays for multiparametric, high sensitive cell based assays. Biosens Bioelectron. 129:208–215. DOI: 10.1016/j.bios.2018.09.095. PMID: 30337105.

26. Food and Drug Administration. HHS. 2005; International Conference on Harmonisation; guidance on E14 Clinical Evaluation of QT/QTc Interval Prolongation and Proarrhythmic Potential for Non-Antiarrhythmic Drugs; availability. Notice. Fed Regist. 70:61134–61135.

27. Altrocchi C, Van Ammel K, Steemans M, et al. 2023; Evaluation of chronic drug-induced electrophysiological and cytotoxic effects using human-induced pluripotent stem cell-derived cardiomyocytes (hiPSC-CMs). Front Pharmacol. 14:1229960. DOI: 10.3389/fphar.2023.1229960. PMID: 37492082. PMCID: PMC10364322.

28. Maillet A, Tan K, Chai X, et al. 2016; Modeling doxorubicin-induced cardiotoxicity in human pluripotent stem cell derived-cardiomyocytes. Sci Rep. 6:25333. DOI: 10.1038/srep25333. PMID: 27142468. PMCID: PMC4855185.

29. Wang H, Sheehan RP, Palmer AC, et al. 2019; Adaptation of human iPSC-derived cardiomyocytes to tyrosine kinase inhibitors reduces acute cardiotoxicity via metabolic reprogramming. Cell Syst. 8:412–426.e7. DOI: 10.1016/j.cels.2019.03.009. PMID: 31078528. PMCID: PMC6657491.

30. Nakamura Y, Yamamoto T, Kobayashi S, et al. 2024; Concomitant administration of dantrolene is sufficient to protect against doxorubicin-induced cardiomyopathy. JACC CardioOncol. 7:38–52. DOI: 10.1016/j.jaccao.2024.10.011. PMID: 39896128. PMCID: PMC11782101.

31. Arola OJ, Saraste A, Pulkki K, Kallajoki M, Parvinen M, Voipio-Pulkki LM. 2000; Acute doxorubicin cardiotoxicity involves cardiomyocyte apoptosis. Cancer Res. 60:1789–1792.

32. Gintant G, Burridge P, Gepstein L, et al. 2019; Use of human induced pluripotent stem cell-derived cardiomyocytes in preclinical cancer drug cardiotoxicity testing: a scientific statement from the American Heart Association. Circ Res. 125:e75–e92. DOI: 10.1161/RES.0000000000000291. PMID: 31533542. PMCID: PMC7398423.

33. Kopljar I, De Bondt A, Vinken P, et al. 2017; Chronic drug-induced effects on contractile motion properties and cardiac biomarkers in human induced pluripotent stem cell-derived cardiomyocytes. Br J Pharmacol. 174:3766–3779. DOI: 10.1111/bph.13713. PMID: 28094846. PMCID: PMC5647189.

34. Guo Y, Pu WT. 2020; Cardiomyocyte maturation: new phase in development. Circ Res. 126:1086–1106. DOI: 10.1161/CIRCRESAHA.119.315862. PMID: 32271675. PMCID: PMC7199445.

35. Karbassi E, Fenix A, Marchiano S, et al. 2020; Cardiomyocyte maturation: advances in knowledge and implications for regenerative medicine. Nat Rev Cardiol. 17:341–359. DOI: 10.1038/s41569-019-0331-x. PMID: 32015528. PMCID: PMC7239749.

36. Yang H, Yang Y, Kiskin FN, Shen M, Zhang JZ. 2023; Recent advances in regulating the proliferation or maturation of human-induced pluripotent stem cell-derived cardiomyocytes. Stem Cell Res Ther. 14:228. DOI: 10.1186/s13287-023-03470-w. PMID: 37649113. PMCID: PMC10469435.

37. Pointon A, Harmer AR, Dale IL, et al. 2015; Assessment of cardiomyocyte contraction in human-induced pluripotent stem cell-derived cardiomyocytes. Toxicol Sci. 144:227–237. DOI: 10.1093/toxsci/kfu312. PMID: 25538221.

Fig. 1

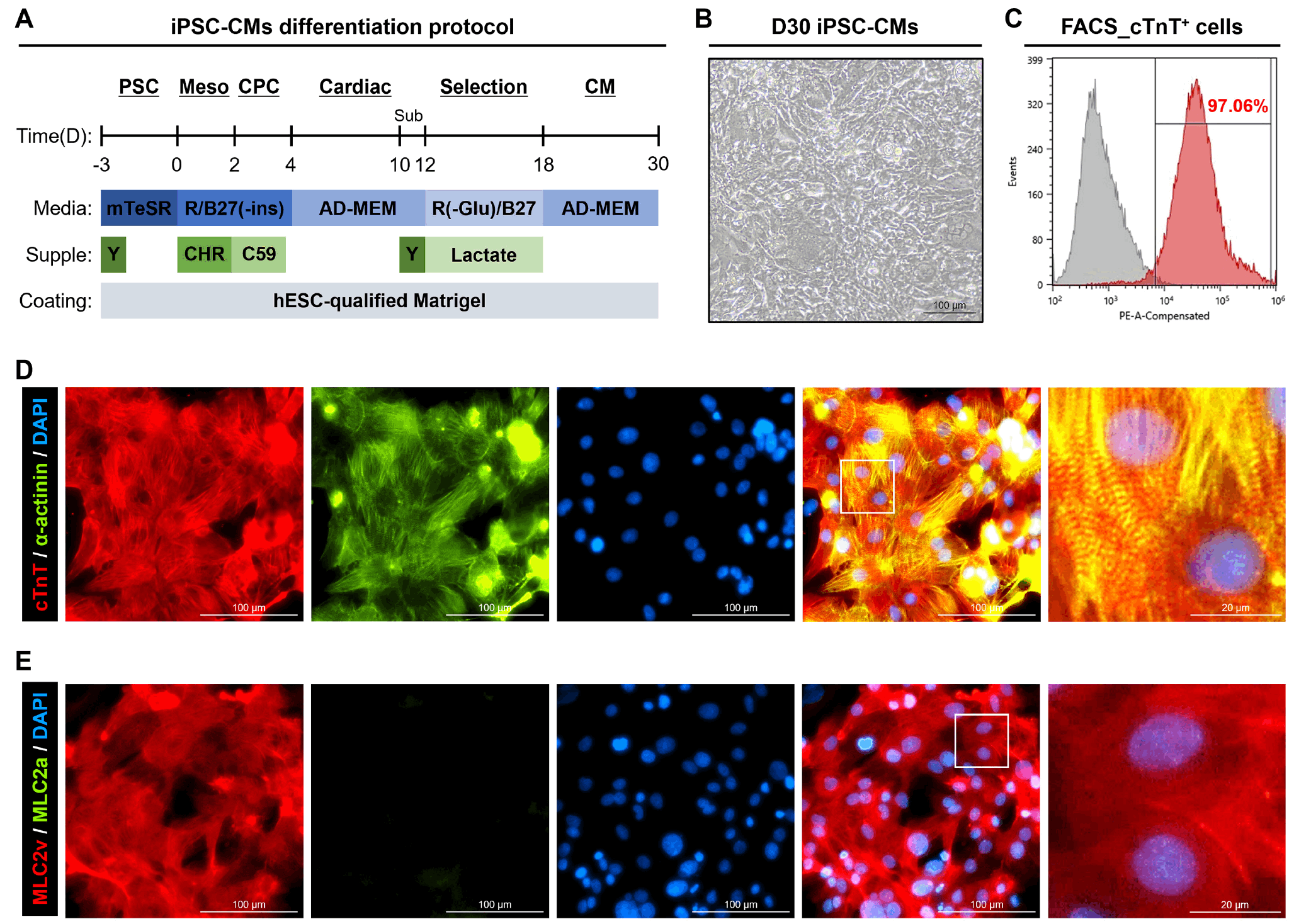

Characterization of iPSC-CMs. (A) Protocol for generation of iPSC-CMs. (B) Morphology of iPSC-CMs at D30 after differentiation. (C) FACS analysis of cTnT^＋ cells in D30 iPSC-CMs. (D) IF staining for cTnT and actinin in D30 iPSC-CMs. (E) IF staining of MLC2v and MLC2a in D30 iPSC-CMs. Scale bar: 100 μm and 20 μm. Yellow box: enlarged image. iPSC-CMs: induced pluripotent stem cell-derived cardiomyocytes, MESO: mesoderm, CPC: cardiac progenitor cell, hESC: human embryonic stem cell, FACS: fluorescence-activated cell sorting, PE: phycoerythrin, Sub: subculture, R/B27(-ins): RPMI 1640 containing B27 minus insulin, R(-Glu)/B27: glucose-free RPMI 1640 with B27 and 4 mM sodium DL-lactate, Y: Y27632, CHR: CHIR99021, Supple: supplement.

Fig. 2

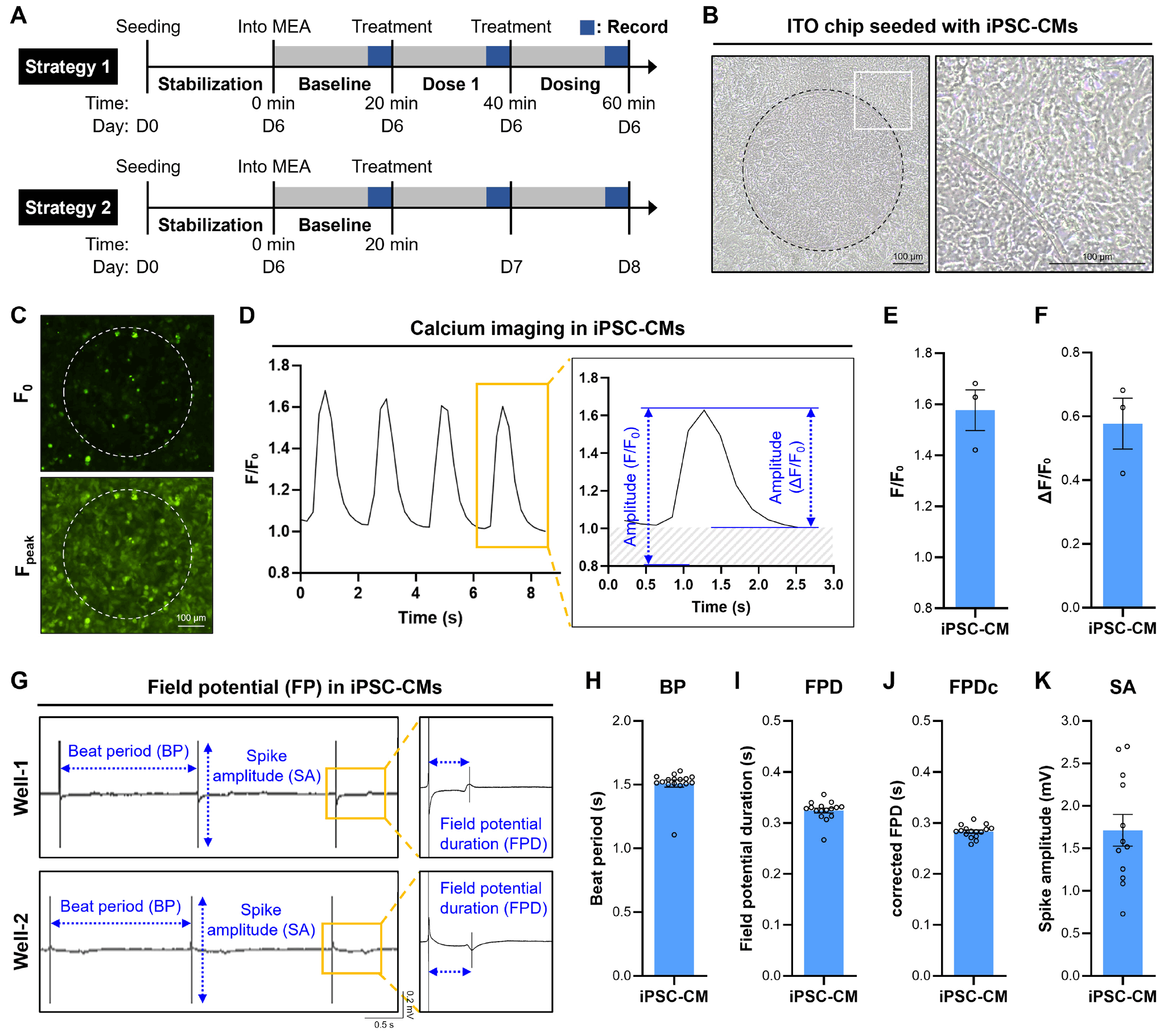

MEA based FP analysis using ITO chip. (A) Strategies for short-term and long-term drug treatment in MEA. (B) Morphology of iPSC-CMs seeded on ITO chip. (C) Representative calcium fluorescence images (F₀ and F_peak) of iPSC-CMs seeded on ITO chip. (D) Calcium imaging raw waveforms of iPSC-CMs at baseline. Yellow box: enlarged single-peak waveform. (E, F) Quantification of calcium transient amplitude (F/F₀ and ΔF/F₀) of iPSC-CMs (n=3). (G) FP raw waveforms of iPSC-CMs at baseline from different wells. Yellow box: enlarged T waveform. (H-K) Quantification of the main FP parameters (BP, FPD, FPDc, and SA) of iPSC-CMs (n=12). Scale bar: 100 μm. Dotted circle: ITO sensor. Data presented as mean±standard error of the mean. MEA: microelectrode array, ITO: indium tin oxide, iPSC-CMs: induced pluripotent stem cell-derived cardiomyocytes, BP: beat period, FPD: field potential duration, FPDc: corrected FPD, SA: spike amplitude.

Fig. 3

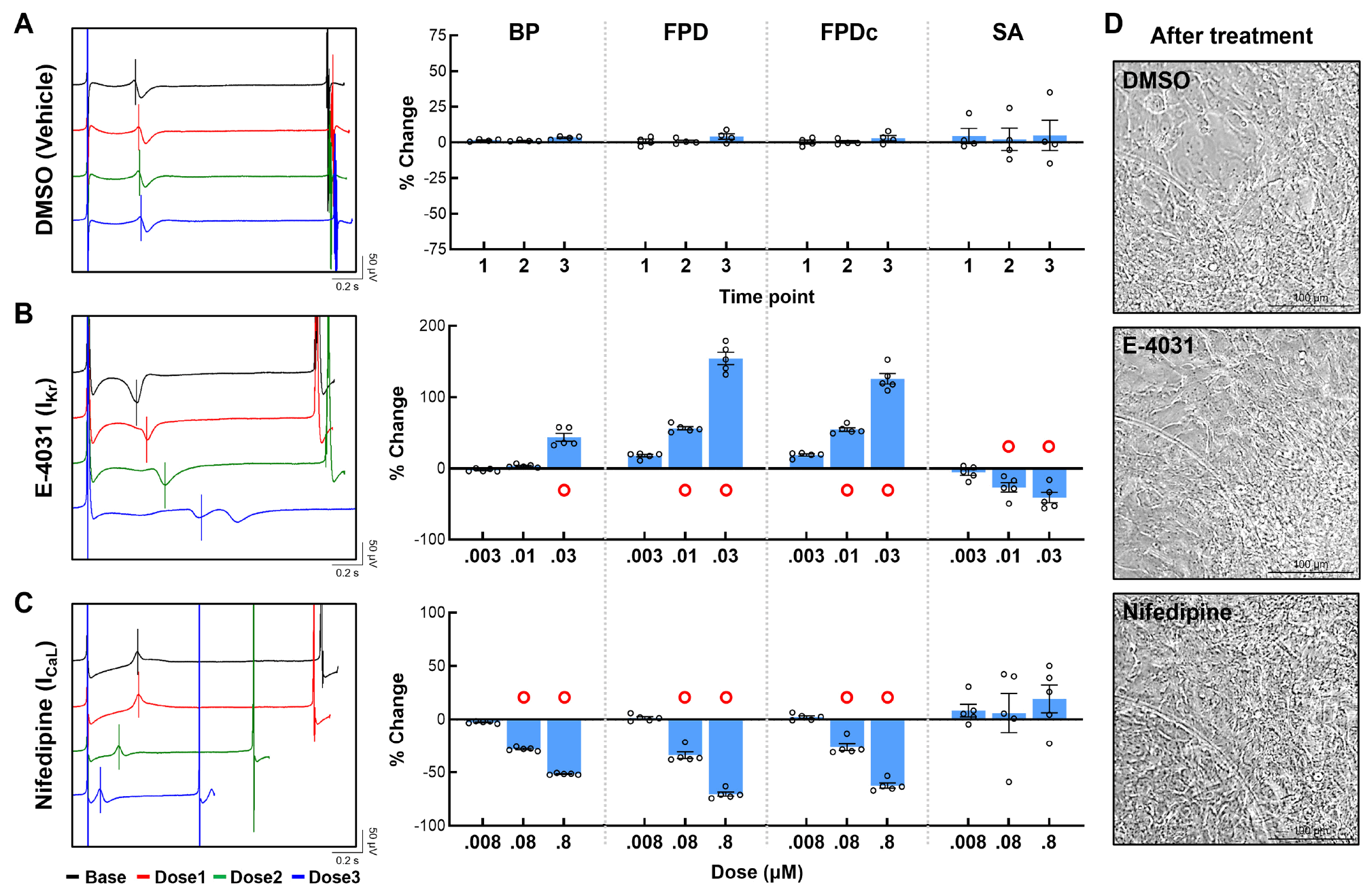

Evaluation of short-term drug responsiveness of ion channel blockers using an ITO chip. (A) Representative FP waveforms and parameter alterations following treatment with different time points of DMSO (vehicle) (n=4). (B, C) Representative FP waveforms and parameter alterations following treatment with different doses of E-4031 (0.003, 0.01, and 0.03 μM) and nifedipine (0.008, 0.08, and 0.8 μM) (n=5). (D) Comparison of iPSC-CMs morphology on ITO chips between groups after drug treatment. Scale bar: 100 μm. Data presented as mean± standard error of the mean. DMSO: dimethyl sulfoxide, BP: beat period, FPD: field potential duration, FPDc: corrected FPD, SA: spike amplitude, iPSC-CMs: induced pluripotent stem cell-derived cardiomyocytes, ITO: indium tin oxide. O: notation for changes of more than 20%.

Fig. 4

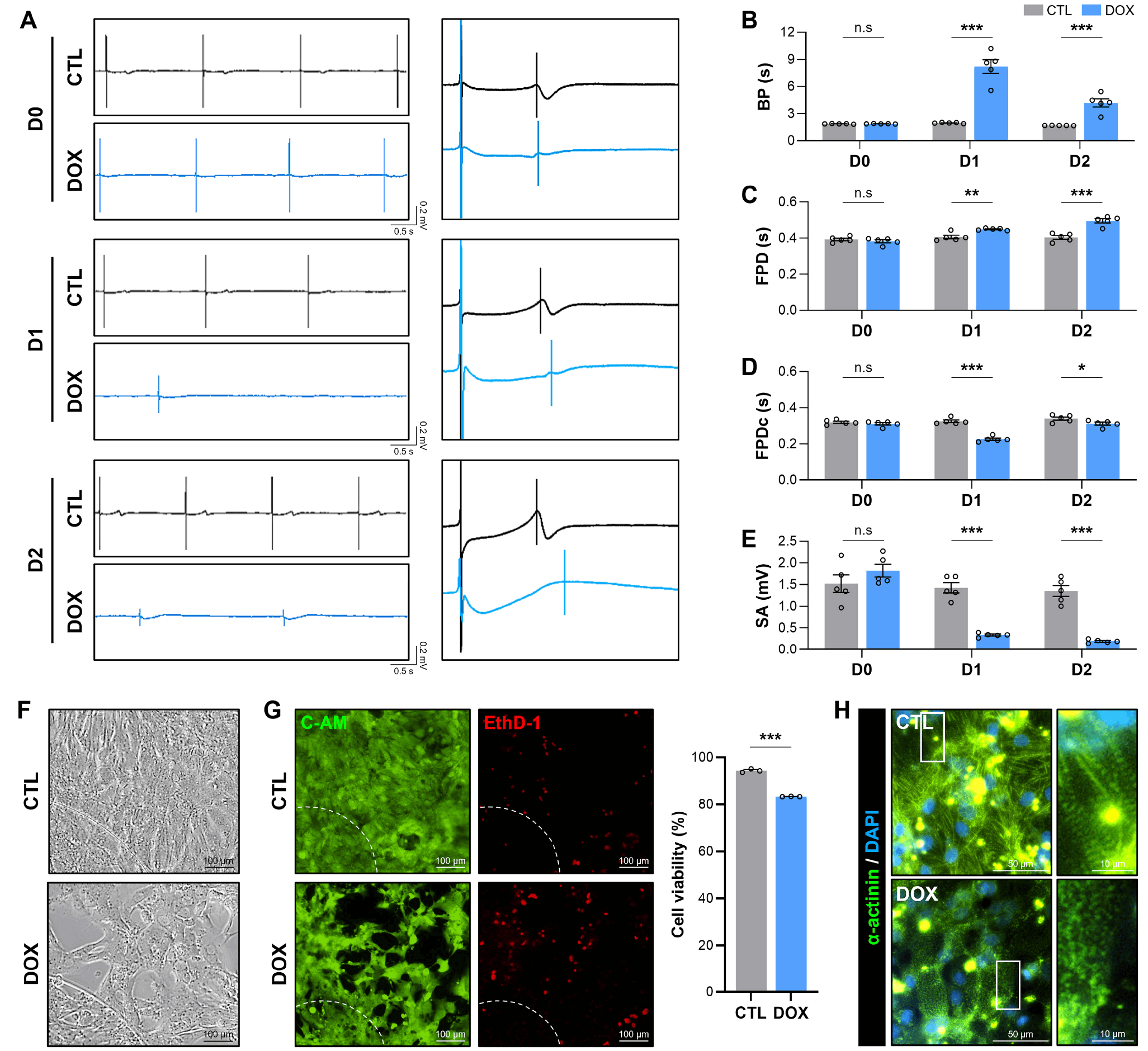

Evaluation of doxorubicin induced cardiotoxicity using ITO MEA. (A) Changes over days in FP raw waveforms following treatment with 0.1% DMSO (CTL) and 3 μM DOX. (B-E) Changes over days in the main FP parameters (BP, FPD, FPDc, and SA) between CTL and DOX (n=5). (F) Comparison of iPSC-CMs morphology on ITO chips between CTL and DOX on D2. Scale bar: 100 μm. (G) Comparison of live/dead assay images and cell viability between groups on D2. Scale bar: 100 μm. (H) Comparison of sarcomeric structures between groups on D2 via α-actinin staining. Scale bar: 50 μm and 10 μm. Data presented as mean±standard error of the mean. CTL: control, DMSO: dimethyl sulfoxide, DOX: doxorubicin, BP: beat period, FPD: field potential duration, FPDc: corrected FPD, SA: spike amplitude, iPSC-CMs: induced pluripotent stem cell-derived cardiomyocytes, ITO: indium tin oxide, C-AM: calcein AM, EthD-1: ethidium homodimer-1, n.s: not significant. *p<0.05, **p<0.01, ***p<0.001.
