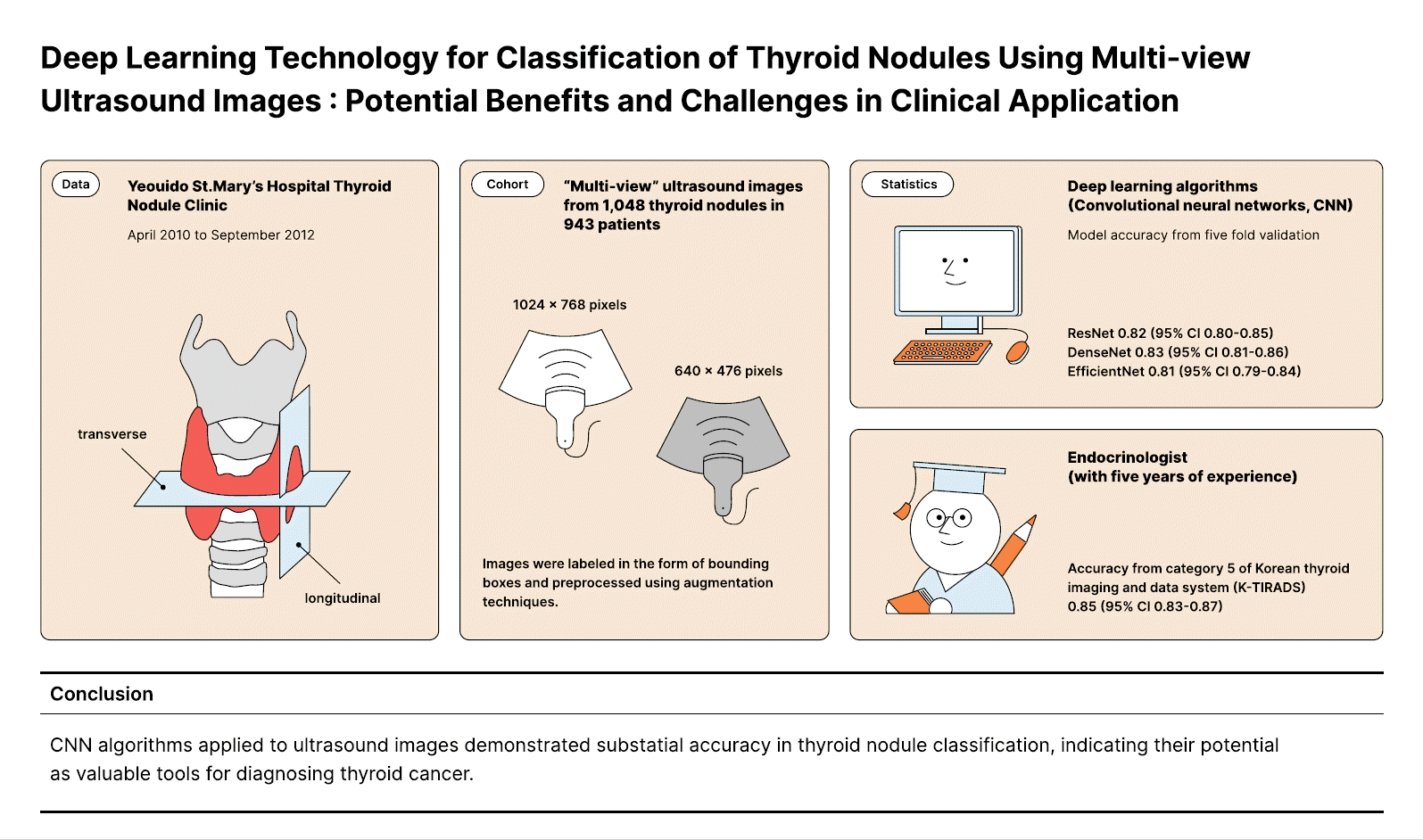

INTRODUCTION
Thyroid cancer develops at a younger age than other malignant tumors, and is the most common endocrine malignancy [1]. The prevalence of nodular lesions of the thyroid gland, including benign lesions, has been reported to vary from 20% to 70% worldwide [2], and approximately 10% of thyroid nodules are diagnosed as thyroid cancer [3]. Due to the high prevalence of thyroid nodules and the high probability of detecting thyroid cancer, accurately distinguishing and managing thyroid nodules is of critical importance.
For differential diagnosis of thyroid nodules, the standard diagnostic approach is to examine the cytology from the suspected lesion using fine-needle aspiration (FNA) followed by review of pathological findings. However, because FNA is an invasive procedure, interpretation of ultrasound images is necessary for determining whether to biopsy [4]. Risk stratification based on the characteristics of ultrasound images is highly accurate [5-7], suggesting that the presence of cancer can be predicted by analyzing ultrasound images of thyroid nodules.
Meanwhile, artificial intelligence (AI) has emerged as a pivotal tool in diagnostic decision across various medical fields [8,9]. Deep learning models mimic the intricate processes of the human brain, and have been shown to be particularly promising in deciphering the complexities inherent in medical datasets [10]. Convolutional neural networks (CNNs), a type of deep learning, are well recognized in the realm of medical imaging for classification tasks [11]. By transforming images into digitized formats through convolution and pooling layers and refining the data with activation functions and fully-connected layer, CNNs are adept at extracting meaningful patterns from medical images.
In this study, we investigated the clinical applicability of AI to classify thyroid nodules by using several CNN algorithms to ultrasound images of thyroid nodules.
METHODS
Study subjects and diagnosis
Patients who underwent biopsy at the Thyroid Nodule Clinic, Department of Endocrinology, Yeouido St. Mary's Hospital from April 2010 to September 2012 were screened for this study. We included cases in which cross-sectional and longitudinal images of the nodule were clearly identifiable and showed no overlap with other nodules. Patients with pathologic confirmation based on cytology from FNA or surgical specimen during follow-up longer than 3 years were screened. If the FNA result was Bethesda category II (benign), the nodule was classified as benign. Cases diagnosed as Bethesda category V (suspicious for malignancy) or VI (malignant) on FNA were classified as papillary thyroid cancer (PTC). Cases with Bethesda category III (atypia of unknown significance) confirmed on initial FNA were analyzed only if the diagnosis was confirmed by repeated FNA or surgery. Cases with unsatisfactory pathologic results (Bethesda category I), those suspected of being a follicular neoplasm (Bethesda category IV), or those confirmed to be malignancies other than PTC (follicular thyroid cancer, medullary thyroid cancer, or lymphoma) were excluded.
The study protocol was approved by the Institutional Review Board of Yeouido St.Mary’s Hospital (Study number SC22RISI0110). Written informed consent was waived because the medical records of patients were retrospectively analyzed.
Data preparation
Board-certified radiologists performed all imaging examinations and FNA. Until April 2011, ultrasound was performed at the study institution with a low-resolution ultrasound device (HDI 5000, Philips Healthcare, Best, Netherlands). After that, the equipment was changed to a high-resolution ultrasound device (iU22, Philips Healthcare). The resolution of the low-resolution images was 640×476 pixels, while that of high-resolution images was 1,024×768 pixels. Before and after the device change, 524 nodules were extracted, and a total of 1,048 nodules were analyzed.
For human reference, an endocrinologist with 5-year of experience (Jinyoung Kim) reviewed the images and stratified the nodules in line with traditional Korean Thyroid Imaging Reporting and Data System (K-TIRADS) scoring. To train deep learning algorithms with the thyroid ultrasound images, nodular lesions were annotated in the form of a bounding box. After obtaining the coordinates of the center of the bounding box, an image of 150 pixels on the top, bottom, left, and right sides was cropped, and a box-shaped image of 300×300 pixels was analyzed (Fig. 1).
For the AI models, augmentation techniques were applied considering the possibility of image deformation under various conditions that may occur during the acquisition of ultrasound images [12]. This standard deep learning image processing was performed in the present study by applying various random transformation methods to images, including; cropping to 256×256 pixels, rotating within 15°, adjusting the brightness or contrast, and flipping horizontally or vertically.
Statistical analysis
Continuous variables are reported as using means and standard deviations, while categorical variables are presented as numbers and percentages. Because this study was conducted without an external validation set, five-fold cross-validation was used to evaluate model performance. Model performance was described in terms of sensitivity, specificity, positive predictive value, negative predictive value, and accuracy. This value was calculated based on K-TIRADS category 5 for human reference, and in the AI models, by combining the binary prediction results of five test sets in cross-validation. Area under the curve (AUC) values were calculated based on the four classes (K-TIRADS categories 2–5) for human, and continuous malignancy probability values of the soft-max function for AI models. To compare model performance, DeLong’s test was conducted for the AUC values.

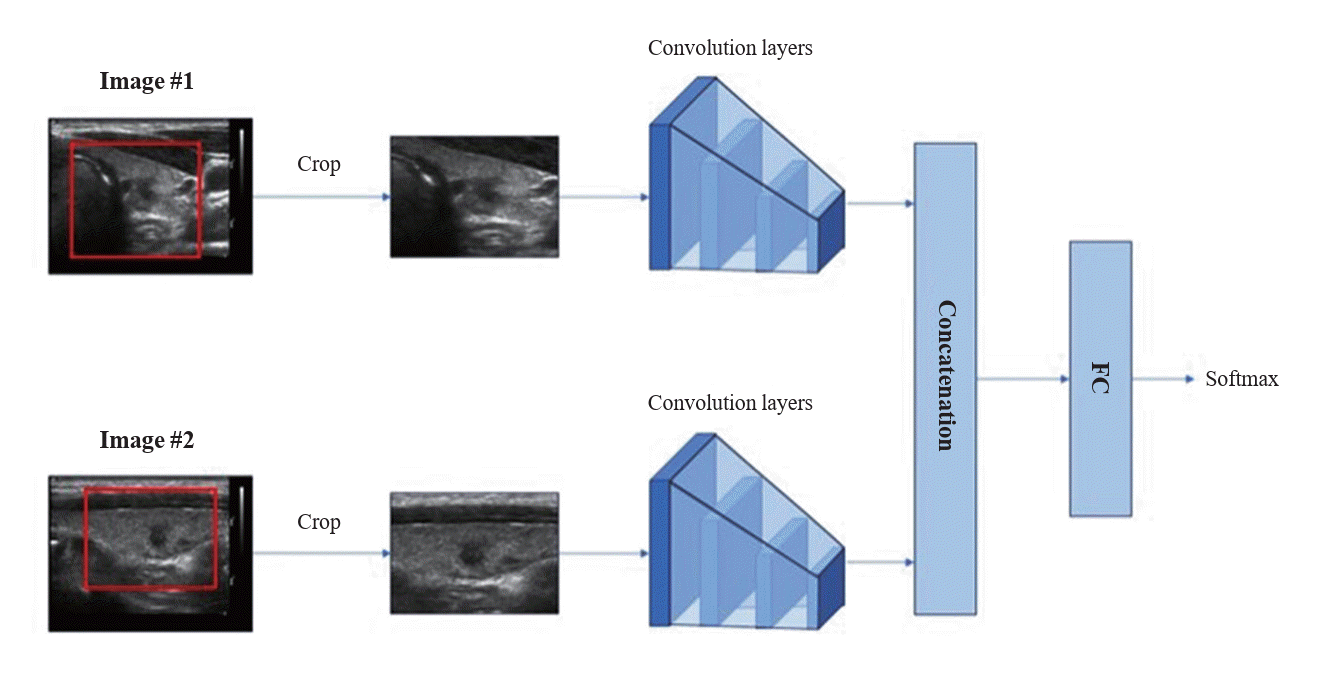

Each CNN model was implemented using PyTorch (https://pytorch.org) with the runtime environment configured on an RTX 4,080 graphics processing unit (GPU). The batch size was set to 64 for single-view analysis, and the batch size was set to 32 for multi-view analysis. Epochs were set to 100, and we employed a learning rate scheduler that starts at 0.005 and reduces the learning rate by half if no performance improvement is observed within 20 epochs. Optimizer used was stochastic gradient descent (SGD) with a momentum value of 0.9 to enhance the stability and speed of model training. Weight decay was set to 0.0005 to prevent overfitting by limiting the increase in model weight and controlling the complexity of the model structure.
Statistical analyses were performed with R version 4.3.3 program (R Foundation for Statistical Computing, Vienna, Austria) and Python version 3.13.0 (https://www.python.org).
RESULTS
Baseline characteristics
Among the 943 patients in the study cohort, the average age was 48 years and 74% were female. The number of thyroid nodules analyzed was 1,048, and the average maximal diameter was 1.2 cm. The malignancy rate among all nodules was 29% with rates of 28% in the low-resolution group and 30% in the high-resolution image groups, which was a non-significant difference (Table 1).
Comparisons of cross-sectional images, longitudinal section images and multi-view analysis

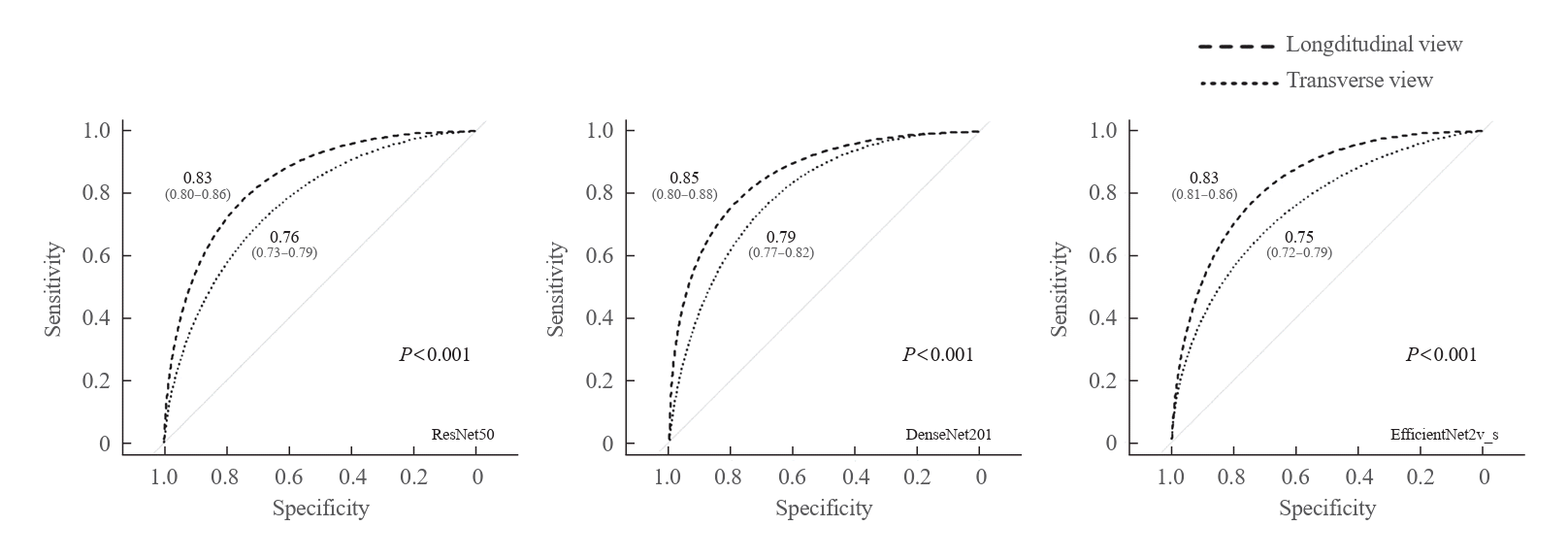

Subgroup analyses of transverse and longitudinal images from each nodule showed that the longitudinal section was superior (Fig. 2, Supplemental Tables S1-S6). Multi-view models that analyzed pairs of transverse and longitudinal images had statistically significantly higher performance than when the transverse section was used alone (P<0.05).
Comparisons of deep learning models with the traditional K-TIRADS
When examining the classification performance of the traditional K-TIRADS in our study cohort, the sensitivity was 90% for the category 5. We compared the performance of AI-models with the traditional scoring by AUC values, and there was no significant difference result, especially for DenseNet201. The specificity of the all three AI models was excellent, with AUC greater than 90% (Table 2, Supplemental Tables S7-S9).
Comparisons based on the differences in image resolution

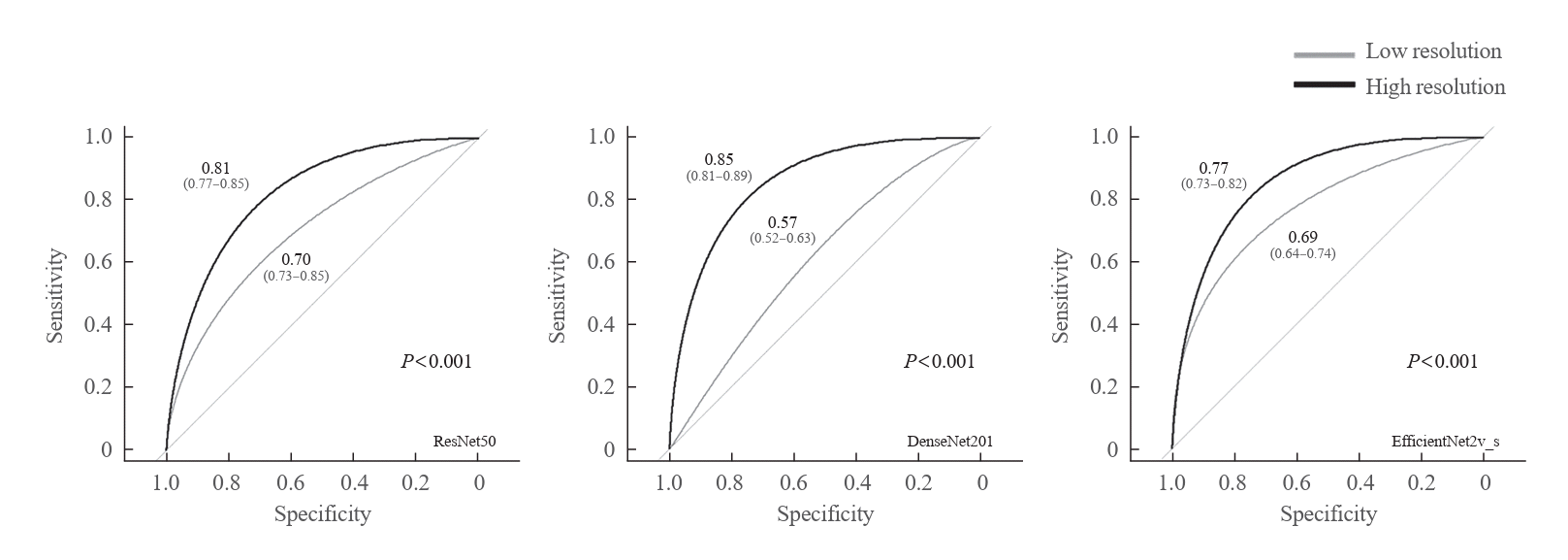

Subgroup analysis was performed on different datasets according to image resolution, reflecting the change in ultrasound imaging equipment over time. The model that learned from high-resolution images had a significantly better performance than the model learned from low-resolution images, and this pattern was consistent for all three CNN algorithms (Fig. 3, Supplemental Tables S10-S15).
DISCUSSION
We designed this study to examine the classification performance of CNN algorithms applied to two-dimensional ultrasound images of thyroid nodules. Improvement in image resolution increased the sensitivity of the model, while refinement of AI algorithms improved the accuracy by increasing specificity. Developing a sufficiently learned and refined deep learning algorithm is expected to be helpful in cancer diagnosis based on image findings.
Among the previous studies in which deep learning technology was applied for differentiating thyroid nodules by ultrasound, the largest-scale study was a multicenter study in China [13]. The researchers named the model ThyNet, and it was made available to the public through GitHub [14]. Considering the advantages and disadvantages of previously developed algorithms, ThyNet combines three algorithms, ResNet, ResNext, and DenseNet, through a weighted voting system that achieved an accuracy greater than 90% in diagnosing thyroid nodules. In Korea, radiologists have attempted to analyze thyroid nodule ultrasound images using deep learning. Alex-Net [15] and VGG-Net [16] were compared with ResNet-based algorithms and classification accuracies greater than 80% were reported, indicating their clinical applicability. In a recent large-scale study, AI-Thyroid developed using 17 different CNN algorithms was validated at 25 multi-centers. This well-trained model yielded an AUC of approximately 90% regardless of the malignancy rate of each institution [17].
CNN is basically composed of an architecture of convolution layers. Although performance is expected to improve as the neural network becomes larger and deeper, the complex structure increases the number of calculations, complicates parameter settings, and can cause problems associated with overfitting when reporting the results. Therefore, new network structures have been developed to improve performance while addressing these challenges. In this study, three recently developed models—ResNet, DenseNet, and EfficientNet—were applied to thyroid ultrasound images. The concept of residual connections to ease the training of deeper networks was introduced in ResNet [18]. DenseNet connects each layer using a channel-wise concatenation method rather than sequentially connecting layers to improve information flow and gradient propagation [19]. EfficientNet uses a compound scaling method to optimize the balance among network depth, width, and resolution. This can significantly increase model performance while simplifying the parameter setting method [20]. Consistent with the findings of a previous study [17], all three algorithms showed excellent performance in this study cohort (Table 2).
Since thyroid images are generally taken in both transverse and longitudinal views, we performed deep learning analysis on images from each view and compared the accuracy. In our results, longitudinal images showed superior accuracy (Fig. 2). We assume that this is related to the way these images are preprocessed. The disadvantage of the box-shaped labeling method is difficult to focus only on the nodule, especially in transverse images, which were included the numerous structures present around the thyroid gland. Therefore, we additionally used Siamese networks for pairing images from transverse and longitudinal views [21]. This multi-view analysis mirrors the multifaceted approach of radiologists when assessing images, aligning the automated process closely with clinical practice. Previous researchers have demonstrated that multi-view approaches can enhance model performance by leveraging complementary information from different perspectives [22]. However, depending on the characteristics of the image and the anatomical region of the target diseases, the optimal number of views to improve classification accuracy may vary, and further investigation is needed on thyroid images [23]. Computer-aided diagnosis systems (CADS) are currently used for thyroid nodules in a semiautomated manner [24], in other words, physicians performing ultrasound examination play an important role in acquisition of sonogram images. The multi-view analysis introduced in this study could resolve inter-observer variability by analyzing two or more images.
The overall accuracy of this study reported lower than that in previous studies due to its low sensitivity. This low sensitivity is likely due to the low resolution of images in the initial dataset. Therefore, subgroup analysis was performed on images taken before and after April 2011, as this is when our clinic started using a new ultrasound device with improved image resolution. The results confirmed that the better resolution of raw images improved the accuracy by increasing the sensitivity of diagnosis (Fig. 3). Based on these findings, we suggest that that the prediction performance of AI models tended to increase as the quality and quantity of the training images increased.
Various types of AI algorithms have been developed to analyze ultrasound images of thyroid nodules; however, application of the developed algorithms in the real world is a major challenge [25]. AI systems provided additional information for classification of thyroid nodules through a local computer or webbased service. S-detect, the most well-known CADS that has been validated in numerous studies, segments nodules and reads sonographic features with considerable accuracy [26]. This system is uniquely implemented in the ultrasound machine and has been commercialized. AI-Thyroid, a deep learning model developed by Korean radiologists, can report the malignancy rate of thyroid nodules and is publicly available on a web-based service [27]. Because the image characteristics of the device that takes the images and the accuracy of the algorithm are closely related, it may be more realistic to match appropriate algorithms to specific machines. When using a web-based algorithm, it is necessary to interpret the result carefully by considering the type of machine and method used to take image.
Multi-view algorithms that learned approximately 1,000 nodules had classification performance comparable to that of the K-TIRADS classification, which is based on the interpretation of an endocrinologist with 5 years of experience. Additionally, deep learning models in our study had superior specificity than the traditional method, which is an advantage in clinical application. Because thyroid cancer is generally indolent [28], high specificity is essential for clinical application to avoid over-diagnosis and treatment. In particular, indeterminate nodules, which are thought to benefit from additional diagnostic testing because the diagnosis is unclear even after biopsy, are of clinical unmet need [29]. Evaluation of the presence of BRAF mutations, which is recommended for additional diagnosis of indeterminate nodules [30], has a sensitivity of only 40% but is recognized for its clinical usefulness because its specificity reaches 100% [31]. Therefore, the application of deep learning models to indeterminate nodules in clinical practice is worthy of future research [32].
With deep learning algorithms, probability-based scoring can be augmented by additionally reviewing the soft-max function results in the last step of the cascade of digitization for computer analysis of images. Images quantified through a convolutional matrix are converted into regression form to predict the class level. Currently, the regression value for each class is normalized through a soft-max function and is output as a probability value between 0 and 1. Typical output is given as the class for which this probability value is highest [33]. Because cancer risk is stratified into five levels for thyroid imaging under the existing guidelines [34-36], continuous cancer probability values can provide additional information to help with thyroid nodule management [37].
Several limitations of this study also need to be discussed. First, the dataset size for model training was relatively small. Compared with a previous study in which the accuracy of the AI improved by learning more than 10,000 nodules [13,17], our model learned from only approximately 1,000 nodules. In addition, the dataset we used was from a single center, and external validation was not performed. The selection bias that commonly occurs in retrospective studies is called dataset shift in the field of AI [38], and external validation is essential for generalization of the model and clinical application because the accuracy of the algorithm is greatly dependent on the quality of training data [39]. Second, the dataset comprised patients who visited the hospital more than 10 years previously and may not reflect recent patient trends. However, the definitive diagnosis of thyroid nodules even in patients who did not receive surgical treatment was estimated using a sufficient follow-up period. In addition, data were collected before and after replacement of devices and showed clear differences in resolution for comparison between diagnostic devices. Last, because we only included binary classes of classic PTC or benign, this AI model cannot differentiate rare cancers of the thyroid gland (e.g., follicular neoplasm, medullary thyroid cancer, anaplastic thyroid cancer, and lymphoma). Therefore, clinicians should take rare pathologic categories into consideration when using current binary prediction type AI based algorithms.
Application of up-to-date deep learning technology to thyroid ultrasound images is expected to be helpful in differentiating of thyroid nodules. However, in real-world clinical settings, it is important to understand that model performance can greatly depend on the quality of the images acquired by different physicians and devices.
